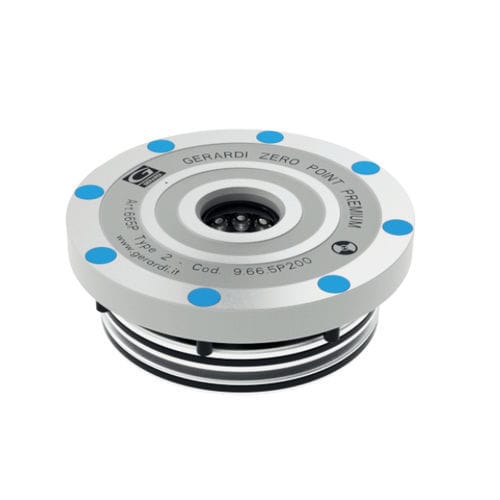

Manual clamping tool 665 series
machining

Manual clamping tool - 665 series  - GERARDI - machining
Manual clamping tool - 665 series  - GERARDI - machining
Manual clamping tool - 665 series  - GERARDI - machining - image - 2
Manual clamping tool - 665 series  - GERARDI - machining - image - 3
Manual clamping tool - 665 series  - GERARDI - machining - image - 4
Manual clamping tool - 665 series  - GERARDI - machining - image - 5
Manual clamping tool - 665 series  - GERARDI - machining - image - 6
Manual clamping tool - 665 series  - GERARDI - machining - image - 7
Manual clamping tool - 665 series  - GERARDI - machining - image - 8
Manual clamping tool - 665 series  - GERARDI - machining - image - 9
Manual clamping tool - 665 series  - GERARDI - machining - image - 10
Manual clamping tool - 665 series  - GERARDI - machining - image - 11
Manual clamping tool - 665 series  - GERARDI - machining - image - 12
Manual clamping tool - 665 series  - GERARDI - machining - image - 13
Manual clamping tool - 665 series  - GERARDI - machining - image - 14
Manual clamping tool - 665 series  - GERARDI - machining - image - 15
Manual clamping tool - 665 series  - GERARDI - machining - image - 16
Manual clamping tool - 665 series  - GERARDI - machining - image - 17
Manual clamping tool - 665 series  - GERARDI - machining - image - 18
Add to favorites
Compare this product

Characteristics

Type
manual
Applications
machining

Description

The Zero Point is an instant positioning and clamping system, ideal for the handling and precise, fast, and safe clamping of equipment on machine tool pallets. It is a “normally closed” system that uses springs to lock the pull stud through internal balls, while compressed, filtered, and lubricated air is used for release.<br> <br>The system guarantees a repeatability within 0.005 mm, allowing extremely precise repositioning even after repeated assembly and disassembly cycles. The integrated elastic collet also effectively compensates for center distance errors and thermal expansion, ensuring consistently stable and reliable clamping.<br> <br>All components are made of hardened and ground steel, ensuring high wear resistance, long-term precision, and extended service life. The system’s quality is confirmed by years of in-house testing under real operating conditions.<br> <br>Finally, the Zero Point system enables immediate start-up, allowing quick verification of fixture and support accuracy, helping to reduce setup times and increase overall production efficiency.<br><br>PRODUCTION OPTIMIZATION<br><br>IRREVERSIBLE<br>MINIMUM MACHINE SET UP TIMES -95%<br>NOT ONLY FOR 5 AXIS CNC<br>EASY LOAD OF MACHINEABLE WORKPIECES<br>SAVING ON FIXTURES<br><br>FEATURES<br><br>SOLID ELASTIC COLLETS<br><br>The multiple Zero Point system (Art.664-665) allows, thanks to the solid integral elastic collet, a lateral translation, that solves problems of centre distances and variations caused by the temperature. The central reference point remains steady accuracy within microns.<br><br>POSITIONING KEYS<br>CLAMPING FORCE INCREASE<br>PULL STUDS<br><br>FEATURES<br><br>ZERO POINT PLATE<br><br>The Zero Point Units could be applicated on many different plates.<br><br>IDEAL FOR VERTICAL CNC<br>IDEAL FOR HORIZONTAL CNC<br>IDEAL FOR 5 AXIS CNC<br> <br><br>
