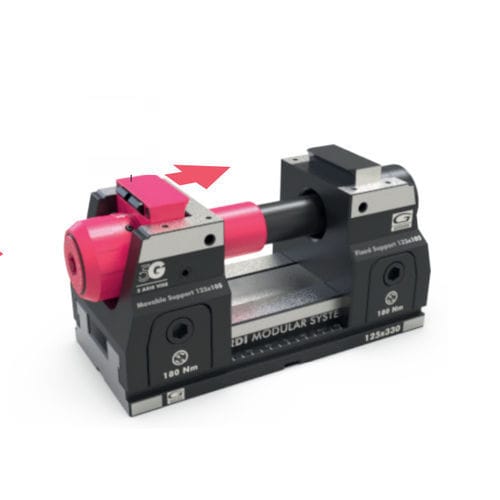

5-axis machine tool vise 5G-125 series

manualscrewprecision

Thanks to it’s versatility and stability, the 5G vise can ensure high precision and repeatability of clamping. Anchoring brackets can be used to fix both jaw supports in place, stiffening the structure and minimising the deflection that normally occurs when clamping at a higher height, once the desired opening has been established. Furthermore, thanks to the screw system, which works in close proximity to the clamping surface, we have been able to significantly increase the height of the workpiece clamping without reducing the clamping force. HIGH SCREW SYSTEM The screw assembly positioned close to the clamping area optimizes the clamping forces generated and reduces deflection, creating the conditions for a stable, precise, and repeatable hold. FROM MOBILE TO FIXED The vise holding clamps transform the two mobile slides into fixed supports, in order to strengthen the structure and minimize flexion during the clamping CREATE YOUR VISE Choose from four base lengths and two jaw support heights to create the ideal combination for your machine’s travel and workpiece size. The high‑rigidity hardened steel base is compatible with all zero‑point and quick‑change systems LIFT THE WORKPIECE The jaws are mounted manually without tools, quickly and precisely, thanks to springs and a dovetail lock. The wide range of available jaws allows quick optimization of the workpiece grip. HARDENED TOP JAW INSERTS Hardened, interchangeable inserts shaped to maximize grip on various materials.
