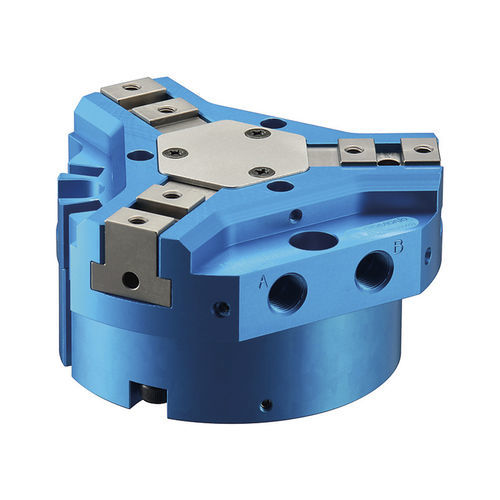

Pneumatic gripper NTS3 series

parallel3-jawfor heavy loads

Product overview

• Standard three-jaw pneumatic parallel gripper designed for high gripping force and compact robot integration.
• Swarf protection and design for simplified maintenance.
• High gripping force suitable for stable handling of heavy workpieces.
• Lightweight, compact body minimizes added load on robot arms.
• New mounting style reduces protrusion compared with conventional models.
• Extremely rigid body for improved gripping accuracy.

Key features

• Close Force (N): 750 (at 0.6 MPa)
• Open Force (N): 800 (at 0.6 MPa)
• Air pressure for listed forces: 0.6 MPa
• Measurement Distance L (mm): 10 (distance from top surface of master jaw to gripping centre)
• Jaw Stroke: 12 mm (diameter), 6 mm per finger
• Repeatability (mm): ±0.01
• Mass (kg): 0.40
• Air consumption per reciprocating (cm3): 24.1
• Operating air pressure (MPa): 0.2 – 0.8
• Operating Temperature (℃): 5 – 60

Specifications (table)
Model | Jaw Stroke (mm) | Measurement Distance L (mm) | OD Gripping (N) | ID Gripping (N) | Repeatability (mm) | Mass (kg) | Air Consumption (cm3) | Air pressure (MPa) | Operating Temperature (℃)
NTS307, 12, 10, 750, 800, ±0.01, 0.40, 24.1, 0.2～0.8, 5～60
NTS309, 16, 20, 1010, 1120, ±0.01, 0.70, 50.2, 0.2～0.8, 5～60
NTS311, 20, 20, 1810, 1930, ±0.01, 1.21, 112, 0.2～0.8, 5～60
NTS313, 24, 20, 3180, 3400, ±0.01, 2.25, 201, 0.2～0.8, 5～60
NTS317, 32, 20, 6400, 6900, ±0.01, 4.53, 505.8, 0.2～0.8, 5～60

Notes

• Install a check valve in the air-pressure circuit so the gripper will not release a workpiece if air pressure drops.
• Reed switch bracket is attached.
• If proximity switches are used for direct detection of jaw stroke, purchase proximity switch brackets separately.
• Internal seals: nitrile rubber (fluororubber seals available as an option).

Technical specifications

• Model: NTS307
• Type: Three-jaw pneumatic parallel gripper
• Close Force: 750 N (at 0.6 MPa)
• Open Force: 800 N (at 0.6 MPa)
• Jaw Stroke: 12 mm (diameter), 6 mm per finger
• Measurement Distance L: 10 mm
• Repeatability: ±0.01 mm
• Mass: 0.40 kg
• Air consumption per reciprocating: 24.1 cm3
• Supply air pressure: 0.2 – 0.8 MPa (reference values given at 0.6 MPa)
• Operating temperature: 5 – 60 ℃
• Included accessory: reed switch bracket
• Recommendations: install check valve; proximity switch brackets sold separately.
