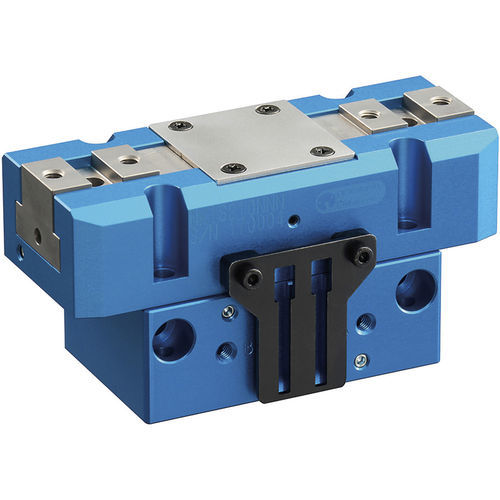

Pneumatic gripper NTS2 series

parallel2-jawfor industrial robots

Product overview
Standard two-jaw pneumatic parallel gripper for industrial automation and robotic handling. Designed for stable part gripping and straightforward integration with robotic end-of-arm tooling.

• Swarf protection and improved maintenance
• High gripping force for stable handling of heavy workpieces
• Lightweight, compact body that does not limit robot payload
• New mounting style with reduced protrusion compared with conventional models
• Improved gripping accuracy due to an extremely rigid body

Main technical data
Close Force (N): 250
Open Force (N): 280
* Air pressure set at 0.6 MPa.
Measurement Distance L (mm): 10
Jaw Stroke: 12 mm (dia.), 6 mm (per finger)
Repeatability (mm): ±0.01
Mass (kg): 0.29
Air Consumption per reciprocating (cm3): 8.4
Air pressure (MPa): 0.2 ~ 0.8
Operating Temperature (℃): 5 ~ 60

Notes

• Install a check valve in the air-pressure circuit so the gripper will not release a workpiece if air pressure drops.
• A reed switch bracket is attached.
• If proximity switches are used for direct detection of jaw stroke, purchase proximity switch brackets separately.
• The material of internal seals is nitrile rubber; fluororubber seals are available as an alternative.

Specifications (table)
Model | Jaw Stroke Diameter (mm) | Measurement Distance L (mm) | OD Gripping (N) | ID Gripping (N) | Repeatability (mm) | Mass (kg) | Air Consumption (cm3) | Air pressure (MPa) | Operating Temperature (℃)
NTS206 | 12 | 10 | 250 | 280 | ±0.01 | 0.29 | 8.4 | 0.2～0.8 | 5～60
NTS208 | 16 | 10 | 460 | 490 | ±0.01 | 0.48 | 18.8 | 0.2～0.8 | 5～60
NTS210 | 20 | 20 | 610 | 680 | ±0.01 | 0.78 | 35.1 | 0.2～0.8 | 5～60
NTS212 | 24 | 20 | 850 | 970 | ±0.01 | 1.34 | 52.4 | 0.2～0.8 | 5～60
NTS216 | 32 | 20 | 1520 | 1690 | ±0.01 | 2.52 | 123.2 | 0.2～0.8 | 5～60
NTS220 | 40 | 20 | 2700 | 2870 | ±0.01 | 5.14 | 272.2 | 0.2～0.8 | 5～60
NTS230-M | 60 | 20 | 4750 | 4820 | ±0.02 | 10.4 | 683.4 | 0.2～0.8 | 5～60
NTS230H-M | 41 | 20 | 7500 | 7650 | ±0.02 | 10.4 | 683.4 | 0.2～0.6 | 5～60

Additional information
The measurement distance is the distance from the top surface of the master jaw to the gripping centre. Values shown are at supply air pressure 0.6 MPa.

Technical specifications

• Brand: Kitagawa
• Model / SKU: NTS206
• Series: NTS series
• Close Force: 250 N (value at 0.6 MPa)
• Open Force: 280 N (value at 0.6 MPa)
• Measurement Distance L: 10 mm
• Jaw Stroke: 12 mm (diameter), 6 mm (per finger)
• Repeatability: ±0.01 mm
• Mass: 0.29 kg
• Air consumption per reciprocating: 8.4 cm3
• Air pressure operating range: 0.2–0.8 MPa
• Operating temperature range: 5–60 ℃
