Circular suction cup HVC05

roundrubberaluminum

Overview

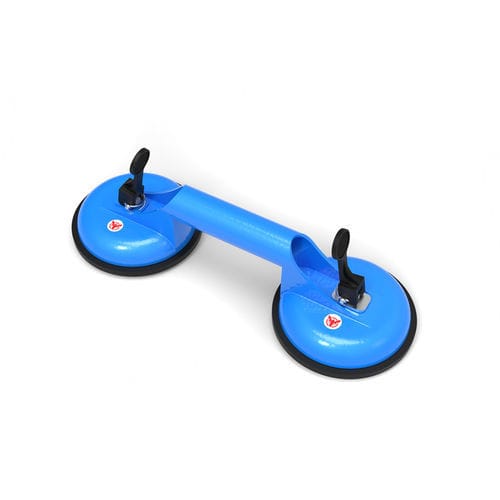

The Double Suction Cup HVC05 is a manual suction lifter designed for handling smooth, non-porous materials such as glass, tiles, plastic, metal and polished stone. The device uses two 122 mm vacuum cups with rubber seals to protect surfaces during lifting. The body is aluminum with rust‑resistant components and it includes a protective carrying case.

Key Features

• Vacuum cups: 122 mm (4 3/4") with rubber seals to avoid surface damage
• Working load limit: Vertical 50 kg (110 lb); Horizontal 100 kg (220 lb)
• Aluminum body and rust-resistant components
• Lever-operated mechanism for engaging and releasing the cups
• Ergonomic handle for controlled manual handling
• Includes protective carrying case

Specifications
Metric / Imperial
Cup diameter: 122 mm / 4 3/4"
Working load limit: Vertical: 50 kg / 110 lb; Horizontal: 100 kg / 220 lb
Net weight: 0.8 kg / 1.8 lb
Gross weight: 1.1 kg / 2.4 lb
Packaging dimensions: L315 x W165 x H100 mm / 12 3/8" x 6 1/2" x 4"

Applications

• Glass handling and glazing installation
• Tile and ceramic handling
• Plastic and metal sheet handling
• Polished stone and countertop installation
• Manual dent pulling and light repair tasks

Technical details

• Model: HVC05
• Product code: HVC05
• Materials: aluminum body, rubber seals; rust-resistant components
• Includes: lever-operated release, protective carrying case
• Intended use: manual lifting only — do not use with mechanical lifting equipment
• MOQ: 120
