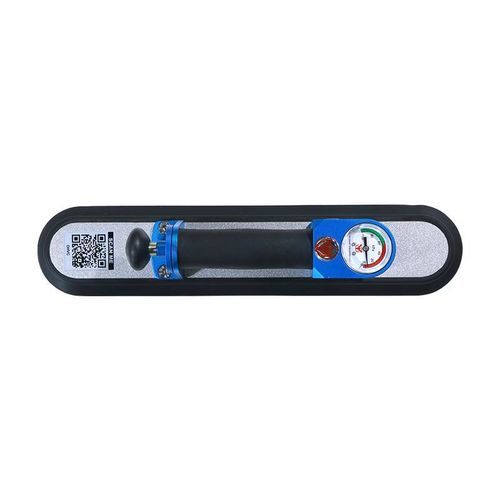

Glass plate vacuum lifting device OHVC

for stone slabsfor pipesmechanical

General
The Oval Hand Vacuum Cup Lifter OHVC is constructed from aluminum with an ergonomic handle integrating a vacuum gauge and a hand pump. It is designed for lifting non-porous, smooth, curved surfaces such as glass, stone and steel pipes. The vacuum is generated by repeatedly operating the hand pump and can be monitored continuously via the integrated pressure gauge. Additional pumping is possible at any time.

Features

• Corrosion-resistant components for use in wet stone-working conditions
• Supplied with a protective carrying case
• Suitable for smooth and curved surfaces
• Three hand pump strokes achieve a high vacuum

Specifications
Metric 013 Imperial
Oval pad: Length 380 mm; Width 80 mm 15" / 3.1"
Working load limit: 100 kg 155 lb
Net weight: 1.3 kg 152.9 lb
Gross weight: 1.9 kg 154.2 lb
Packaging dimensions: L 450 x W 150 x H 110 mm 117.7" x 5.9" x 4.3"

Technical specifications

• Model: OHVC
• Material: Aluminum construction with ergonomic handle
• Integrated vacuum gauge for continuous monitoring
• Hand pump operation (three strokes provide high vacuum)
• Suitable for non-porous, smooth curved surfaces (glass, stone, steel pipes)
• Includes protective carrying case
