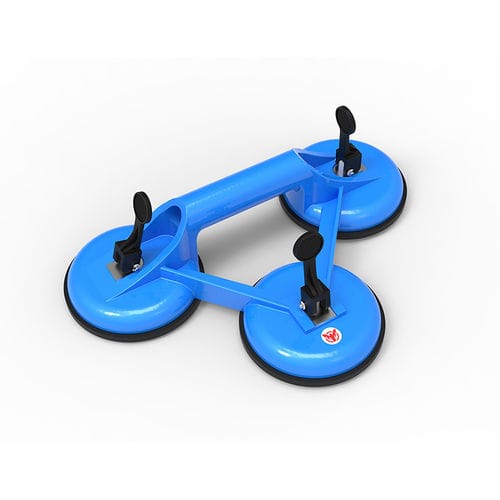

Flat part vacuum lifting device HVC06

for PVCglass platemechanical

General
The Triple Suction Cup HVC06 is suitable for use on glass, tiles, plastic and other smooth, non-porous surfaces. It can also be used for pulling out dents. All cups are fitted with a rubber seal that protects surfaces during lifting. For manual lifting only; do not use with mechanical lifting equipment.

Specifications
Metric (mm-kg) / Imperial (inch-lb)
Cup diameter: 122 mm / 4.8"
Working load limit: Vertical: 75 kg; Horizontal: 150 kg / Vertical: 165 lb; Horizontal: 331 lb
Net weight: 1 kg / 2.2 lb
Gross weight: 1.4 kg / 3.1 lb
Packaging dimensions: 360 x 150 x 230 mm / 14.2 x 5.9 x 9 in

Features / Technical specifications

• Product name: Triple suction cup
• Model / Manufacturer reference: HVC06
• Brand: Aardwolf
• Cup diameter: 122 mm (4.8")
• Body: aluminium cast
• Seals: rubber seal (protects surfaces)
• Principle: lever-operated vacuum generation (lower lever to engage; raise to release)
• Recommended use: smooth, non-porous surfaces (glass, tiles, plastic, etc.)
• Additional applications: dent pulling
• Working load limit (metric): Vertical 75 kg; Horizontal 150 kg
• Working load limit (imperial): Vertical 165 lb; Horizontal 331 lb
• Net weight: 1 kg (2.2 lb); Gross weight: 1.4 kg (3.1 lb)
• Packaging dimensions: 360 x 150 x 230 mm (14.2 x 5.9 x 9 in)
• Product code / MOQ: HVC06 / 50 pcs
