Flat part vacuum lifting device HVC

mechanicalaluminum

General

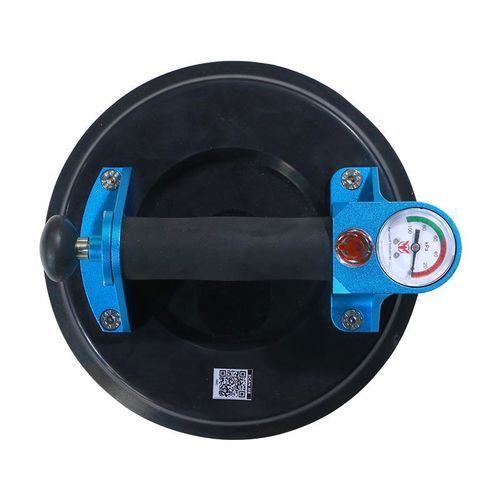

The Hand Vacuum Cup Lifter HVC-220 is made from aluminium with an ergonomic handle, integrated vacuum gauge and priming pump. The device uses a manual hand-lever pump; approximately 3 strokes produce a high vacuum. The vacuum level is continuously monitored on the pressure gauge and additional pumping can be performed at any time. Intended for manual handling on flat, smooth surfaces; supplied with a protective carrying case.

Features

• Aluminium construction with ergonomic handle
• Integrated vacuum gauge for continuous monitoring
• Priming hand pump — ~3 strokes to reach high vacuum
• Corrosion-resistant components for wet stone-working conditions
• Supplied with protective carrying case
• For flat, smooth surfaces only

Specifications
Metric | Imperial
Cup diameter: 220 mm | 8.7 in
Working load limit: 120 kg | 265 lb
Net weight: 1.46 kg | 3.2 lb
Gross weight: 2 kg | 4.4 lb
Packaging dimensions: L.270 x W.270 x H.110 mm | 10.6 x 10.6 x 4.3 in

Technical specifications

• Cup diameter: 220 mm
• Working load limit (WLL): 120 kg
• Net weight: 1.46 kg
• Gross weight: 2 kg
• Packaging dimensions: L.270 x W.270 x H.110 mm
• Material / construction: aluminium body with ergonomic handle, integrated vacuum gauge and priming pump
• Operation: manual hand-lever vacuum pump (approx. 3 strokes to reach high vacuum); vacuum monitored via pressure gauge
• Accessories: protective carrying case included
• Suitability: for flat, smooth surfaces only
• Environment: corrosion-resistant parts for wet stone-working conditions
