Circular suction cup WHVC1

roundaluminumstainless steel

General introduction

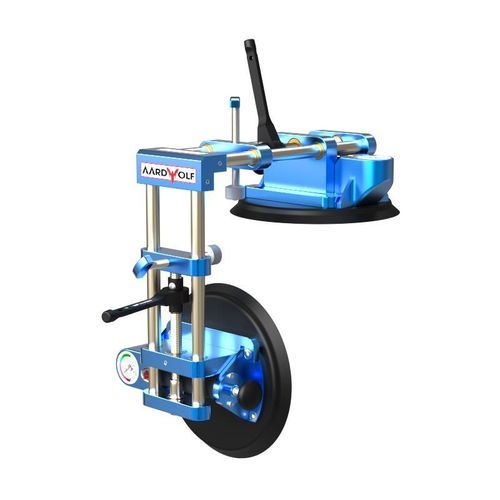

The Aardwolf Waterfall Setting Tool (WHVC1) is a precision alignment tool for bonding waterfall panels to stone countertops. It is designed for use on granite, marble and engineered stone and provides controlled clamping and accurate miter alignment using dual vacuum cups with integrated pressure gauges and manual hand pumps. The kit is corrosion-resistant and intended for both workshop and on-site installation. Supplied as a set of two complementary units (left and right).

Key features

• Dual vacuum cups: secure hold on polished stone without marking
• Integrated gauges: real-time vacuum monitoring
• Fast pump activation: strong vacuum achieved within three strokes
• Release valves: immediate release to prevent sticking
• Durable construction: aluminium and stainless-steel components
• Tool-free adjustments: quick knobs for rapid setup and alignment
• Surface-safe contact: non-invasive clamping protects finished edges
• Compact and portable: easy transport and jobsite handling

Specifications
Metric | Imperial
Suction cups: 4 × Ø200 mm (2 per tool) — 4 × Ø7 7/8 (2 per tool)
Working load limit: 1000 kg — 2200 lbs
Net weight: 8.1 Kg — 17.86 lbs
Gross weight: 9.2 Kg — 20.28 lbs
Packaging dimensions: L.390 x W.250 x H.380 mm — 15.35 x 9.84 x 14.96 inches

Technical specifications

• Product name: Waterfall Setting Tool (WHVC1)
• Brand: Aardwolf
• Materials: aluminium and stainless steel (corrosion-resistant)
• Vacuum system: dual vacuum cups with integrated gauges and hand pumps
• Suction cups per set: 4 × Ø200 mm (2 per tool)
• Working load limit: 1000 kg (approx. 2200 lbs)
• Net weight (set): 8.1 Kg
• Gross weight (packaged): 9.2 Kg
• Packaging dimensions: 390 × 250 × 380 mm
• Supplied: set of two tools (left and right units)
