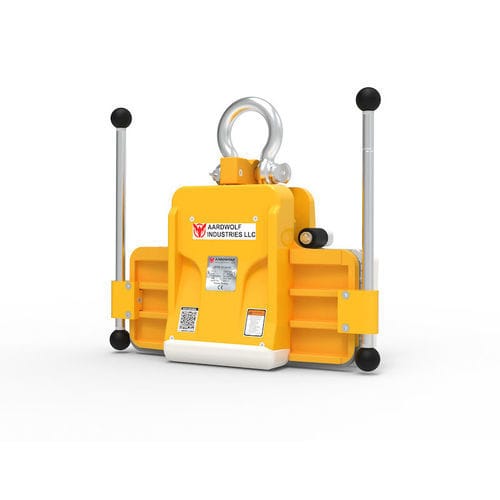

Glass plate vacuum lifting device AL30AWJH

verticalautomaticforklift mounted

General description
The Aardwolf Glass Lifter AL30AWJH is a dedicated vertical glass lifting clamp designed for industrial use with cranes and forklift booms. It enables secure vertical pick-up of the top glass sheet from racking systems even when only a minimal gap exists between sheets. The gravity-assisted automated locking secures the load at pickup and releases on set-down. Constructed for repeated heavy-duty handling, it supports sheets up to 1200 kg while minimising edge and surface damage.

Key features

• Automated locking: gravity-assisted mechanism for secure pick and automatic release.
• Extra-wide jaws: balanced support for large glass panels.
• Rubber-coated clamp plates: reduce scratches and protect surfaces.
• Precision side rollers: center the glass and protect edges during handling.
• Compatibility: suitable for use with cranes and forklift booms.
• Capacity: working load limit 1200 kg for heavy applications.

Specifications
Item | Metric | Imperial
Grip range | 0–30 mm | 0–1 1/8 in
Working load limit | 1200 kg | 2646 lb
Net weight | 26 kg | 57.3 lb
Gross weight | 26.7 kg | 58.9 lb
Packaging / Size | L440 × W150 × H360 mm | 17 1/4 in × 6 in × 14 1/4 in

Applications and benefits

• Efficient vertical retrieval of glass sheets from racking systems in production and storage environments.
• Tight-gap capability increases throughput where storage space is limited.
• Streamlines one-operator handling to reduce cycle time and manpower needs.
• Protective pads and rollers lower the risk of rework from edge or surface damage.
• Includes a 2-year warranty for spare parts and support.
