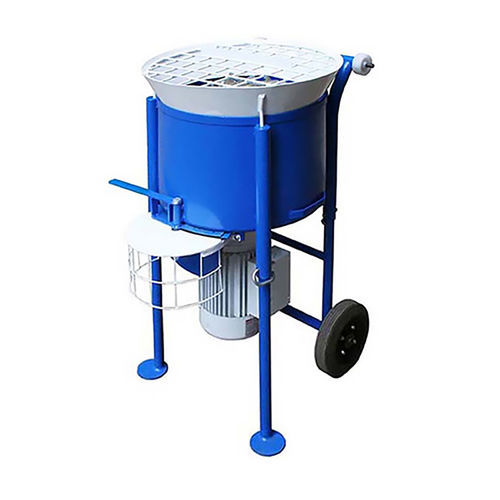

Electric concrete mixer MML40

mobileverticalcompact

General
The portable Mortar Mixer L40 is a compact vertical-shaft mixer designed to blend mortar, grout and polymer-based materials in small batches. It mixes sand-and-cement mortars, grout and self-leveling epoxies in approximately 3–5 minutes. The vertical-shaft action minimizes splashing; a hand-operated discharge shoot allows controlled delivery. The unit is suitable for single-person transport and operates quietly thanks to its 1 hp electric gear motor and simple drive system.

Main uses

• Mixing sand and cement mortars
• Mixing grout and repair mortars
• Preparing polymer-based and self-leveling epoxy compounds in small quantities

Features

• 40 L drum capacity
• Vertical shaft, non-splash mixing action
• Removable paddles for easy cleaning
• Hand-operated discharge shoot for precise delivery
• Lightweight and single-person transportable
• Quiet operation
• 1 hp electric gear motor with high torque
• All-steel frame and drum

Specifications
Metric — Imperial
Drum capacity: 40,000 ml — -
Paddle speed: 27 rpm — -
Power supply: 220V - 1 Phase 50-60Hz — -
Drum diameter: 424 mm — 16.7''
Net weight: 69 kg — 152 lb
Gross weight: 85 kg — 187 lb
Package dimension: 650 x 480 x 1050 mm — 25.6'' x 18.9'' x 41.3''

Technical specifications

• Product code: MML40
• Model: Mortar Mixer L40
• Drum capacity: 40,000 ml (40 L)
• Paddle speed: 27 rpm
• Power supply: 220V, single phase, 50‑60 Hz
• Drum diameter: 424 mm (16.7'')
• Net weight: 69 kg (152 lb)
• Gross weight: 85 kg (187 lb)
• Package dimensions: 650 x 480 x 1050 mm (25.6'' x 18.9'' x 41.3'')
• Mixing time: 3 to 5 minutes (depending on material)
• Suitable materials: sand & cement mortars, grout, polymer-based materials, self-leveling epoxies
• Construction: all-steel frame and drum
• Mixing action: vertical shaft (non-splash)
• Discharge: hand-operated shoot
• Motor: 1 hp electric gear motor, high torque
