Electric concrete mixer MML111

mobilecompactsilent

General

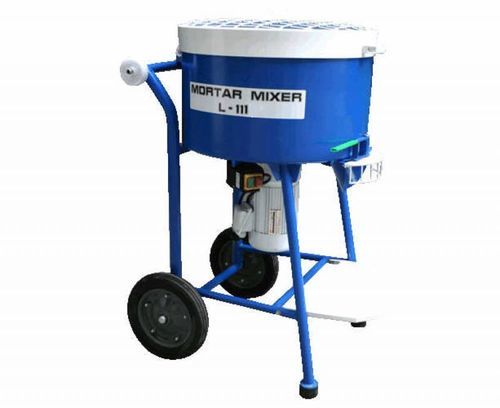

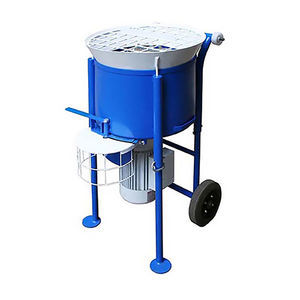

The portable mortar mixer L111 mixes materials from sand and cement to self-leveling epoxies, producing a homogeneous mix in 3–5 minutes. Designed for one-person transport, it fits in elevators and passes through standard doors. The vertical-shaft mixing action minimizes splashing; the hand-operated discharge door allows controlled discharge from a handful to a bucket or wheelbarrow. The unit operates quietly and features an all-steel frame and drum powered by a high-torque 1 HP electric gear motor.

Features

• Lightweight and portable
• Quiet operation suitable for enclosed sites
• Fits elevators and standard doorways
• Removable paddles for easy cleaning
• Simple, reliable drive system
• Fast mixing (3–5 minutes)
• High-torque gear motor

Specifications
Metric | Imperial
Drum capacity: 106,000 ml | -
Paddle speed: 27 rpm | -
Power supply: 220V - 1Phase 50-60Hz | -
Drum diameter: 660 mm | 26 in
Net weight: 90 kg | 198 lb
Gross weight: 112 kg | 246 lb
Package dimension: 750 x 890 x 1400 mm | 29.5 x 35 x 55 in

Technical specifications

• Model: L111
• Product code: MML111
• Drum capacity: 106,000 ml (≈106 L)
• Paddle speed: 27 rpm
• Power supply: 220V, 1Phase, 50-60Hz
• Drum diameter: 660 mm (26 in)
• Net weight: 90 kg (198 lb)
• Gross weight: 112 kg (246 lb)
• Package dimensions (L x W x H): 750 x 890 x 1400 mm (29.5 x 35 x 55 in)
• Motor: 1 HP electric gear motor (high torque)
• Construction: all-steel frame and drum
• Discharge: hand-operated door for controlled dosing
• Maintenance: removable paddles for easy cleaning
