Electric cut-off saw SSM1200

for stone

General

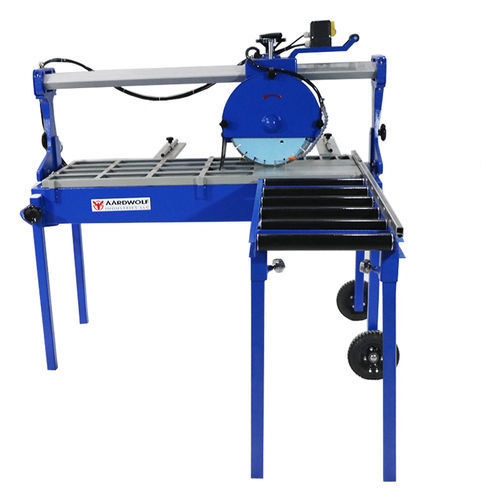

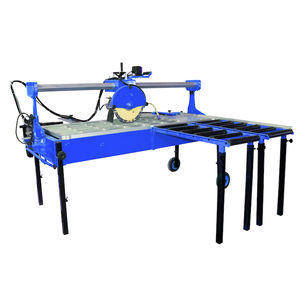

The Aardwolf M 1200 SSM1200 site saw is a portable industrial cutting machine designed for accurate cutting of natural and engineered stone on construction sites and workshops. It is driven by a 3Hp motor guided by twelve bearings running on two extruded aluminium rails. The machined cast-aluminium work table is bolted to the water tank to increase rigidity and prevent frame distortion on uneven surfaces.

Features

• Roller conveyor for easy loading and support of the workpiece
• Two load-support brackets with adjustable stops for fast, repeatable cuts
• Wheels and rollers integrated for single-person loading and transport
• Tilting bridge adjustable from 90° to 45° for bevel cuts
• Water tank with recycling pump for blade cooling
• Manual depth adjustment of the cutting head via hand wheel
• Stainless-steel measuring tape fixed to table and conveyor

Specifications
Metric / Imperial (inch-lb)
Cutting angle for 45°: 30 / 1.2 in
Cutting angle for 90°: 60 / 2.4 in
Power supply: 220V - 1 Phase 50-60Hz
Total length: 1370 mm / 54 in
Net weight: 152 kg / 335 lb
Gross weight: 176 kg / 388 lb
Package dimensions: 1560 x 730 x 970 mm / 61.4 x 28.7 x 38.2 in

Note
Saw blade not included

Technical specifications

• Product code: SSM1200
• Model: M 1200
• Motor: 3Hp
• Bearing guidance: twelve bearings on two extruded aluminium rails
• Work table: machined cast-aluminium table bolted to water tank for increased rigidity
• Loading: roller conveyor; integrated wheels and rollers for transport
• Load support: two brackets with adjustable stops for repeat cuts
• Bevel cutting: tilting bridge 90° to 45°
• Cooling: water tank with recycling pump
• Cutting head adjustment: manual via hand wheel
• Measurement: stainless-steel tape fixed to table and conveyor
• Power supply: 220V, single phase, 50-60Hz
• Total length: 1370 mm (54 in)
• Net weight: 152 kg (335 lb)
• Gross weight: 176 kg (388 lb)
• Package dimensions: 1560 x 730 x 970 mm (61.4 x 28.7 x 38.2 in)
• Note: Saw blade not included
