Circular saw SSM2000

horizontalfor stonewet abrasive

General

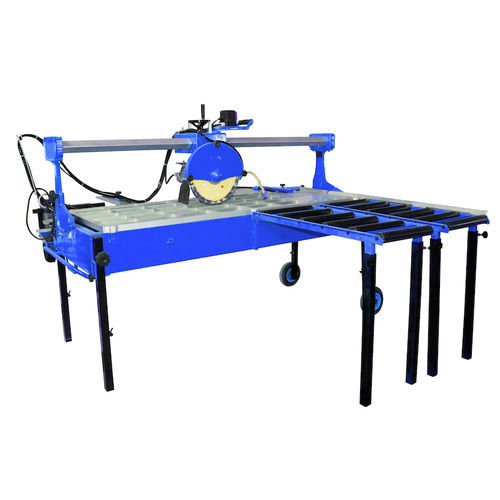

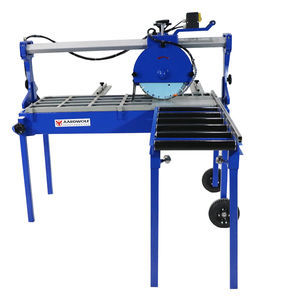

The Aardwolf Site Saw M2000 (SSM2000) is a bench saw designed for cutting natural and engineered stone on construction sites and in workshops. It is powered by a 3Hp motor guided by twelve bearings that roll on two extruded aluminium guide bars. The machined cast-aluminium work table is firmly bolted to the water tank, giving high rigidity and preventing frame twisting on uneven surfaces to ensure accurate cuts.

Features

• Two roller conveyors for easy loading and support of the workpiece
• Two adjustable load-support brackets with stops for quick, accurate repeat cuts
• Wheels and rollers integrated for effortless single-person loading and transport
• Tilting bridge from 90° to 45° for bevel cuts
• Water tank with recycling pump for wet cutting
• Manual depth adjustment of the cutting head via hand wheel
• Stainless-steel measuring tape fixed to table and conveyor

Specifications
Metric — Imperial
Cutting angle for 45° — 30 — 1.2"
Cutting angle for 90° — 60 — 2.4"
Power supply — 220V-1Phase 50-60Hz — -
Total length — 1540 mm — 60.6"
Net weight — 210 kg — 463 lb
Gross weight — 215 kg — 474 lb
Package dimension — 2200x800x900 mm — 86.6"x31.5"x35.4"

Note
Saw blade not included

Technical specifications

• Model: M2000 (SSM2000)
• Motor: 3Hp
• Guidance: twelve bearings on two extruded aluminium bars
• Work table: machined cast-aluminium bolted to water tank
• Conveyors: two roller conveyors
• Load-support brackets: adjustable with stops
• Mobility: wheels and rollers for single-person handling
• Tilting bridge: 90° to 45°
• Water system: tank with recycling pump
• Depth adjustment: manual by hand wheel
• Measuring tape: stainless steel fixed to table and conveyor
• Cutting angle (45°): 30 mm / 1.2"
• Cutting angle (90°): 60 mm / 2.4"
• Power supply: 220V - 1 Phase 50-60Hz
• Total length: 1540 mm (60.6")
• Net weight: 210 kg (463 lb)
• Gross weight: 215 kg (474 lb)
• Package dimension: 2200x800x900 mm (86.6"x31.5"x35.4")
