Building material lifting clamp ABGL series

mechanicalautomatic

General

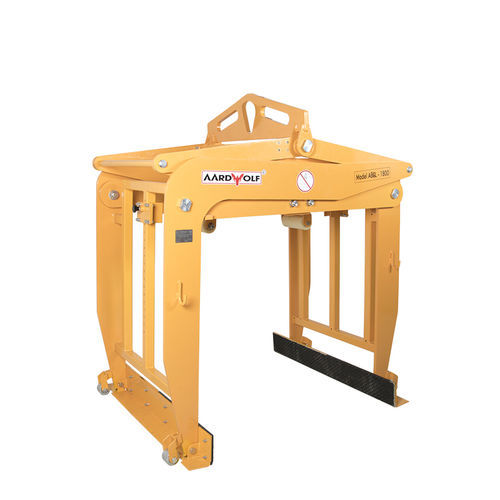

The Brick Grabs Lifter ABGL-1800 is designed to mechanically lift, move and place bricks of varying sizes without additional hydraulic or electrical connections. Clamping jaws are fitted with durable rubber pads to secure the load. The unit is compatible with overhead cranes, mobile cranes, truck-mounted cranes and forklifts for factory or construction-site use. It handles non-palletized loads and can operate in confined or awkward positions. The grab features an adjustable plunge depth to accommodate loads of different heights.

Features

• Fully automatic clamping mechanism (no external hydraulics or electrical supply required)
• Adjustable plunge depth for different pack heights
• Profiled hooks for attachment accessories
• Durable rubber pads for secure grip

Specifications
Metric (mm-kg) | Imperial (inch-lb)
Grip range: 800 - 1100 mm | 31.5 – 43.3 in
Pad length: 1200 mm | 47 in
Internal height: 1100 mm | 43.3 in
Working load limit (WLL): 1800 kg | 3968 lb
Net weight: 590 kg | 1301 lb
Gross weight: 610 kg | 1345 lb
Packaging dimensions: L1550 x W1270 x H2110 mm | 61 x 50 x 83 in

Characteristics / Technical specifications

• Model: ABGL-1800
• Grip range: 800 - 1100 mm (31.5 – 43.3 in)
• Working load limit (WLL): 1800 kg (3968 lb)
• Pad length: 1200 mm (47 in)
• Internal height: 1100 mm (43.3 in)
• Net weight: 590 kg (1301 lb); Gross weight: 610 kg (1345 lb)
• Packaging dimensions: L1550 x W1270 x H2110 mm (61 x 50 x 83 in)
• Clamping jaws with durable rubber pads
• Fully automatic operation without external hydraulics or electrical supply
• Adjustable plunge depth
• Profiled hooks for attachments
• Compatible with overhead, mobile and truck-mounted cranes and forklifts
