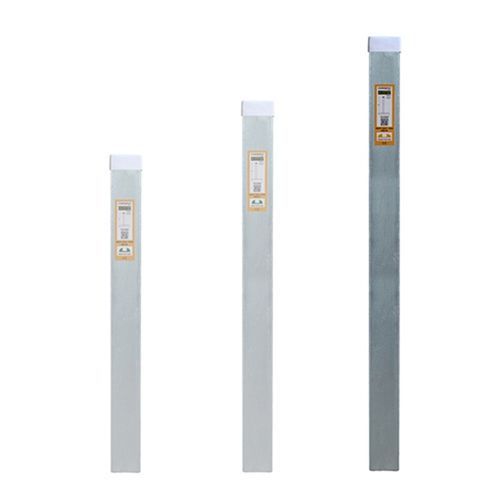

Steel storage rack ABRP1600

Product
Bundle rack post ABRP1600 for heavy bundle/panel storage. Steel post with a 100 x 50 mm section, 5 mm wall thickness and 1600 mm height; yield strength 345 MPa.

Specifications
Metric | Imperial
Wall thickness: 5 mm | 0.2"
Yield strength: 345 MPa | -
Net weight: 16.9 kg | 37.3 lb
Gross weight: 17.1 kg | 37.7 lb
Post dimension: 100 x 50 x 1600 mm | 3.9" x 2" x 63"

Working load limit

• Consult the post storage capacity documentation to determine applicable load limits.
• Use the capacity tool to decide the number and type of posts required for your rack configuration.

Technical characteristics

• Brand: Aardwolf
• Product code: ABRP1600
• Material: steel
• Section: 100 x 50 mm
• Wall thickness: 5 mm (0.2")
• Yield strength: 345 MPa
• Net weight: 16.9 kg (37.3 lb)
• Gross weight: 17.1 kg (37.7 lb)
• Post height: 1600 mm (63")
