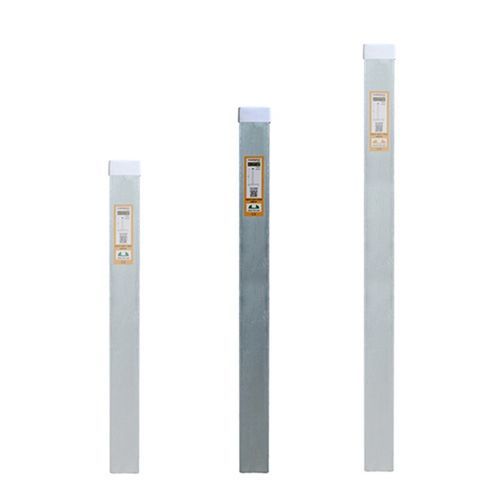

Metal sheet storage rack ABRP1400

steel

Product
Bundle rack post for slab and bundle storage, profile 100 x 50 x 5 mm, intended for heavy-duty warehouse racking.

Product code
ABRP1400

Category
Slab & bundle racks / Posts & accessories

Overview
Steel post manufactured for use in slab and bundle rack systems. Designed with a 5 mm wall thickness and a 345 MPa yield strength to provide structural support for heavy slabs and panels.

Specifications (metric | imperial)
Wall thickness: 5 mm | 0.2"
Yield strength: 345 MPa | -
Net weight: 14.7 kg | 32.4 lb
Gross weight: 14.8 kg | 32.6 lb
Post dimension: 100 x 50 x 1400 mm | 3.9" x 2" x 55.1"

Working load limit

• To determine the post storage capacity, use the Slab Rack Storage Calculator tool provided by the manufacturer.
• The tool helps calculate the number and type of posts required for a given storage configuration.

Recommended applications

• Support and separation of heavy slabs and panels in industrial racks
• Warehouse storage systems requiring high stiffness and mechanical resistance

Technical features / specifications

• Dimensions: 100 x 50 x 1400 mm (3.9" x 2" x 55.1")
• Wall thickness: 5 mm (0.2")
• Material: steel
• Yield strength: 345 MPa
• Net weight: 14.7 kg (32.4 lb)
• Gross weight: 14.8 kg (32.6 lb)
• Product code: ABRP1400
