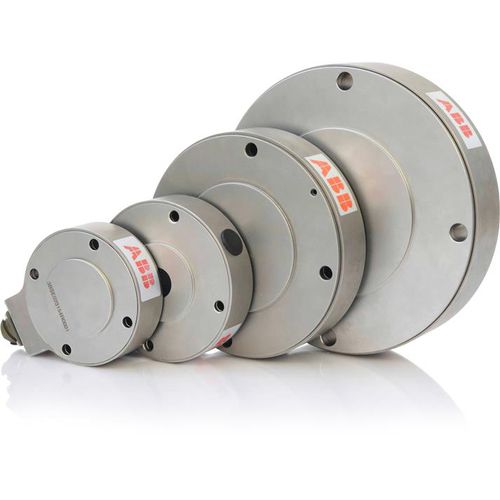

Pancake type load cell PFRL101 series

For measuring web tension with shaft-mounted load cells, The Pressductor Radial Load Cell System is a high-quality system that provides exceptional and long lasting performance. The Pressductor Radial Load Cells are ideal for applications on a wide range of web processing machinery in the converting, plastic film, printing, textiles, and other industries. The first Pressductor transducer was developed in Västerås, Sweden, in the early 1950's and patented in 1954. ABB's well-known Pressductor® Technology is a measurement principle based on the magnetoelastic effect - the magnetic properties of a material are influenced by the mechanical force applied to it. When exposed to mechanical force, ABB's Pressductor transducer produces measurement signals as a result of changes in magnetic fields. (Move your mouse over the illustration to see these changes.) Because these signals are not contingent upon physical movement or deformation, the load cells combine sensitivity with extraordinary tolerance to overloads and virtually no built-in limit to the number of load cycles. The ABB Pressductor transducers produces high-power, low-impedance AC signals that are very resistant to electrical interference and earth faults. ABB's Pressductor transducer stands for unbeatable load cell performance, thanks to its unique combination of accuracy, overload capacity and ability to withstand harsh environments.
