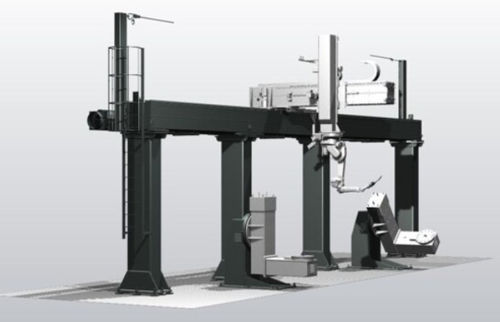

Gantry robot

2-axis3-axis1-axis

Product overview
High-payload gantry positioners engineered for heavy-duty positioning and material handling in industrial automation. Modular gantry architecture enables long travel lengths and large work envelopes and allows mechanical integration with ABB robots and controllers.

Key features

• Product name: Gantries High Payload Positioners
• Category: Gantries
• Brand: ABB
• Gantry (X-Y) structure for large work envelopes
• High payload capacity suitable for heavy parts
• Multi-axis integration (X, Y, optional Z and rotation)
• Customizable span, travel and mounting interfaces
• Precision linear guides and servo drive control

Applications

• Heavy part handling and transfer
• Assembly, machining and welding of large components
• Palletizing/depalletizing and load positioning
• Aerospace, automotive and heavy equipment manufacturing

Options & customization

• Rail types, span and travel length options
• End-effector adapter plates for ABB robot models
• Safety fencing, interlocks and access systems
• Force/load sensors, position feedback and motion tuning
• Site-specific engineering and installation support

Ordering information
Contact ABB or an authorized distributor with application details (required payload, reach, cycle time) to obtain model references, load tables and detailed specifications.
