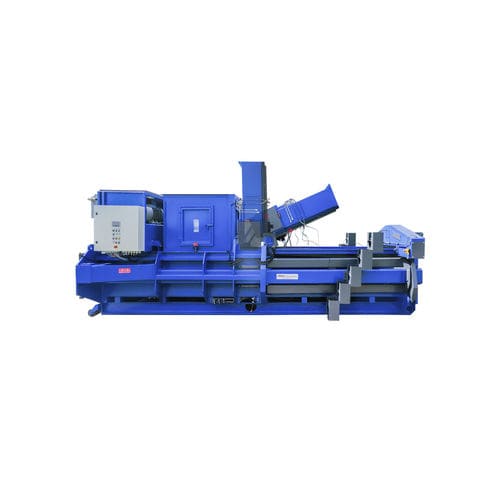

Horizontal baling press Albamat 800 V5

channelfor cardboardfor paper

80 t pressing force Suitable for pressing: paper, cardboard, printing waste, foil, hard and soft plastics (PET, HDPE etc), fleece, Aluminium and tinplate cans (Optional) Low energy consumption due to advantageously crossed press cylinder arrangement (2 press cylinders) 5-fold automatic vertical tying Vertical stamp, Tank and control cabinet heating and oil-cooler as standard equipment Ground slide and piston valve for covering the needle opening (prevents contamination of the binding unit with plastic or other small particles, etc.) Channel adjustment - 3 sides, hydraulic-automatic, 4 working cylinder 4 retaining clamps to retain expanding material in the press channel Photocell control in the filling chute Continuous feeding by conveyor belt or similar Fast cycle times Additional photocell for overfilling Mobile, hook lift according to DIN Pivoting tying unit for transport and service Simple and safe operation via 5.7" touch panel and push button function 10 programs for different materials (paper, foil, plastic, user recipes etc.) Operator side freely selectable From motor drive 60 KW machine equipped with Hardox guide (Press piston) incl. wear- and heat-resistant piston guide strips Hopper as required Optional: Hardox floor and channel
