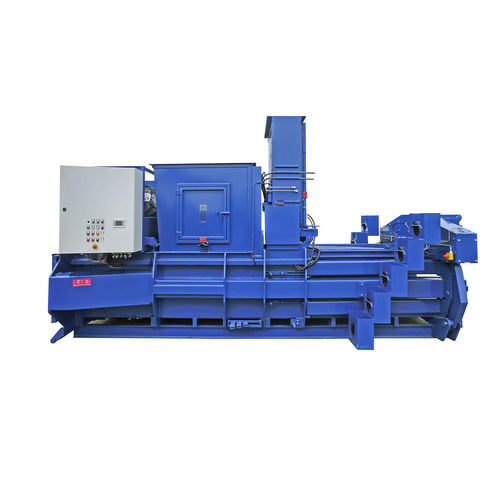

Horizontal baling press Albamat 600 V5
channelfor cardboardfor paper

horizontal baling press
horizontal baling press
horizontal baling press
horizontal baling press
horizontal baling press
horizontal baling press
horizontal baling press
horizontal baling press
horizontal baling press
horizontal baling press
Add to favorites
Compare this product


Characteristics

Orientation
horizontal
Loading
channel
Applications
for cardboard, for paper, for plastics
Other characteristics
automatic, compact, mobile
Compression power

60 tf

Bale weight

Min.: 450 kg
(992 lb)

Max.: 500 kg
(1,102 lb)

Description

60 t pressing force Suitable for pressing: paper, cardboard, printing waste, foil, hard and soft plastics (PET, HDPE etc), fleece Low energy consumption due to advantageously crossed press cylinder arrangement (2 press cylinders) 5-fold automatic vertical tying Vertical stamp, Tank and control cabinet heating and oil-cooler as standard equipment Ground slide and piston valve for covering the needle opening (prevents contamination of the binding unit with plastic or other small particles, etc.) Channel adjustment - 3 sides, hydraulic-automatic, 4 working cylinder 4 retaining clamps to retain expanding material in the press channel Photocell control in the filling chute Continuous feeding by conveyor belt etc. Fast cycle times Additional photocell for overfilling Mobile, hook lift according to DIN Pivoting tying unit for transport and service Simple and safe operation via 5.7" touch panel and push button function 10 programs for different materials (paper, foil, plastic, user recipes etc.) Operator side freely selectable Hopper as required
