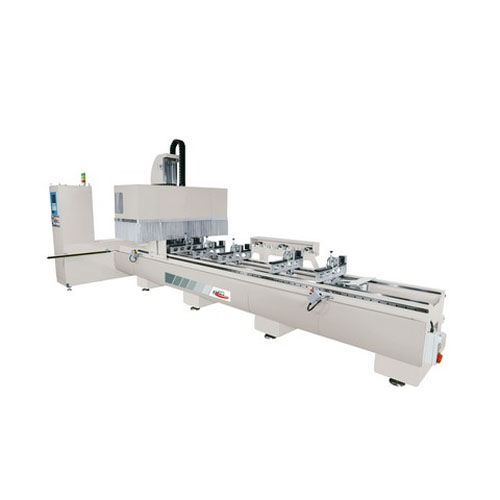

5-axis machining center BOLERO 3
verticalbridgetraveling-column

5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
bridge, traveling-column
Machined material
for aluminum
X travel

4,000 mm
(157 in)

Y travel

360 mm
(14 in)

Rotational speed

Max.: 20,000 rpm
(125,664 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Power

12.5 kW
(17 hp)

Description

Floor-type vertical spindle machining center with bridge type gantry assembly, with 5 axis controlled by CNC, able to work on extruded aluminium, light alloys, PVC and iron. The machine is fitted with an electric-spindle (12,5kw., 20.000 rpm) with shank according with HSK63 rule, preset for an automatic tool change. The tool magazine, fixed on the mobile upright, can store till 5 tools to drill, to mill and to thread plus 1 to mill with a side milling cutter. Equipped with 4x standard vices. Kit purifications by micro drop with pure oil. Light curtain system. SPINDLE’S AXIS (A) CAN BE POSITIONED ELECTRONICALLY AT EVERY DEGREE INCLUDED IN 180° ±90° AT THE SAME TIME CAN BE TURNED (C) ON 360°
