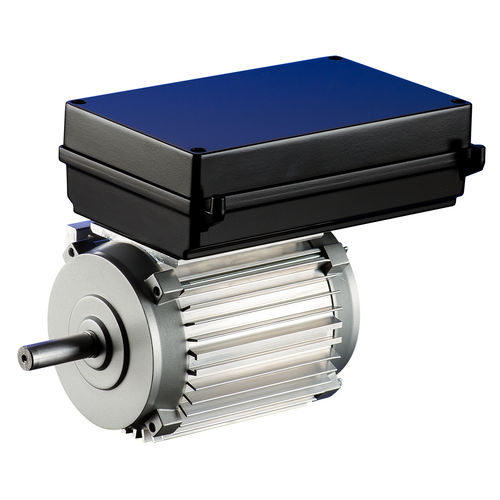

Synchronous motor SINOCHRON® PREMIUM-LINEACpermanent magnetcompact
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC
- Configuration
- permanent magnet, compact
- Protection class
- IP54, IP55
- Cooling mechanism
- self-ventilated
- Applications
- industrial
- Other characteristics
- high-efficiency, with integrated inverter
- Power
Max.: 9 kW
(12.24 hp)Min.: 0.12 kW
(0.16 hp)- Torque
Max.: 28.6 Nm
(21.094277 ft.lb)Min.: 0.75 Nm
(0.553172 ft.lb)- Rotational speed
Max.: 3,000 rpm
(18,849.5559 rad.min-1)Min.: 1,500 rpm
(9,424.778 rad.min-1)
Description
Advantages
• High efficiency —› energy efficient
• Sinochronous motors with high performance permanent magnets
• Efficiencies of 90 % and higher
• Compact design
• High power density
• Precise speed control
Technical Data
PREMIUM-LINE
Rated Output (self-ventilated): 0.2 - 9.0 kW
Torque (self-ventilated): 1.3 - 28.6 Nm
Rated Output (non-ventilated): 0.12 - 5.0 kW
Torque (non-ventilated): 0.75 - 16.0 Nm
Output Speed: 1,500 - 3,000 rpm
Protection Class: IP54, IP55
Inverter: Integrated / Stand-alone
