Industrial DC/DC converter BAP 236R-EH Series
plug-in19" rackfor railway applications

industrial DC/DC converter
industrial DC/DC converter
industrial DC/DC converter
Add to favorites
Compare this product


19" rack, plug-in
industrial, for railway applications
Other characteristics
wide input range, switching, rugged, high MTBF, EN50155, convection-cooled, redundant, stand-alone
Input voltage

24 V, 48 V, 125 V

Max.: 145 V

Min.: 21 V

Output voltage

12 V, 24 V, 48 V, 125 V

Max.: 130 V

Min.: 0 V


200 W

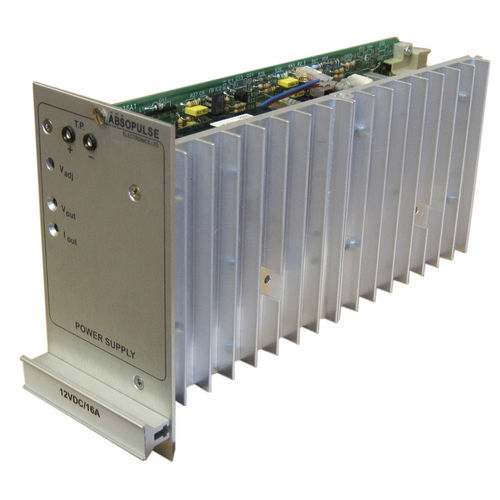

This rugged, industrial quality DC-DC plug-in module with uses field proven topology to deliver up to 200W output power. It is a mature design with a track record in numerous heavy-duty applications. The module is hot-insertable and has a built-in redundancy diode which allows for parallel connection and N+1 redundant operation. A fail open type optocoupler output fail alarm is included. Cooling is by natural air convection. Full electronic protection, large design headroom and the use of components with established reliability contribute to high demonstrated MTBF. The unit is also available as a stand-alone chassis mount module in our F2 size package, the BAP 236-F2. A railway quality version of this design is also available. Key Specifications - 200W, Industrial quality DC-DC Eurocard (plug-in) module; - 200W, Railway quality Eurocard version available (BAP 236R-EH); - Input: 24Vdc, 36Vdc, 48Vdc, 72V, 96Vdc, 110Vdc or custom; - Output: 12V/16A, 24V/8A, 48V/4.1A, 125V/1.6A or custom; - EMI: EN55032 Class A with wide margins; - Cooling: Convection by natural air movement; - 0°C to +50°C operating temperature range for full specification; - 3U x14HP x 220mm Eurocard plug-in module; - Up to six BAP 236-EH plug-in modules are installed in 3U x 19″ rack-mount shelves.
