Lifting platform FT-006

suspendedfor construction siteelectric

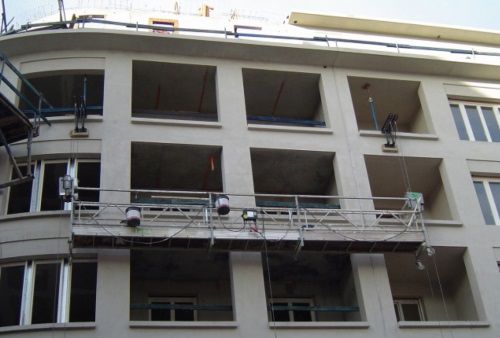

Modulaho® Hanging Scaffold The hanging scaffold Modulaho is composed by aluminium pieces from 2 to 3 m of length, lightweight, easy to assembly, store and transport. Specially designed for lifting people and according to EN 1808 norm. The length of Modulaho suspended platform can be 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 or 16 m of length with a maximum load capacity of 900 kg. The suspended scaffolding Modulaho is compatible with e.lift 350, 500 and 800 electric hoists, p.lift 500 pneumatic hoists and m.lift 400 manual hoists. Quick and simple assembly with safety bolts. The Modulaho suspended platform is compatible with different suspension systems (for facades, bridges, chimneys, parapets, light shafts...) as well as Fixeo system over mast. Modulaho has many accessories to adapt depending on the works to realize like adjustable angle section, support wheels, "C" stirrups, power supply plugs, perimeter protection, secondary lightening, wire rope rollers, roof protection... To guarantee the safety it has double wire ropes (suspension wire rope and secondary wire rope) and includes a Securichute or Securistop fall arrest device. The Modulaho suspended platform is delivered with instructions manual, certificate and includes label and identification plates. If it's necessary Accesus can realize a training for the operators. Advantages: - Unlimited height work. - Easy to assembly and unassembly with only a few elements to set-up. - High modularity; it's possible to assembly a platform from 2 to 16 m of length. - Maximum compatibility with electric, pneumatic or manual hoists. - Compatible with Fixeo system. - Huge range of accessories.
