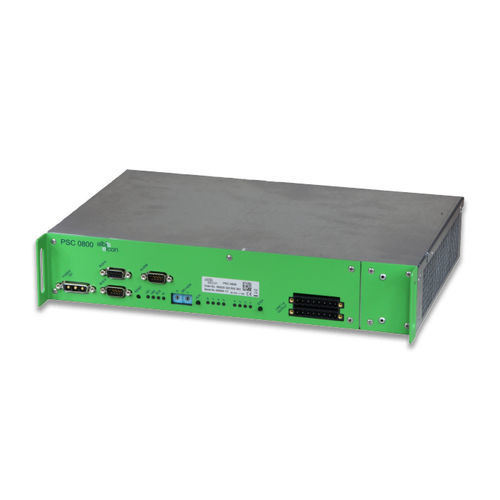

Rack-mount power supply PSC 0800

DCIP20for electrical networks

The PSC 0800 unit connects up to 8 individual feeding lines delivering up to 120 W for remote feeding of remote system components in a distance of up to 5 km. To convert the full power of one PSC 0800 at the remote site either one PSR 08xx or two PSR 04xx can be installed. Cascading of twelve PSC 0800 units and the corresponding PSR 083x units delivers up to 720 W to the remote site working with highest power efficiency of up to 92 %. The state of the art management unit PSM 1001 complements the PSC 0800 for local as well as remote management in combination with our MetroIntegrator system. Technical data Up to 22 W* output power per line (ca. 15 W in 5 km range**) RFT-C feeding current: ≤ 59 mA DC 48 V / 60 V DC In Required components at remote site: PSR 04xx / PSR 08xx Optional: PSM 1001 management unit Optional: Network management system MetroIntegrator Integrated remote management with redundancy Local management interface daisy chained up to 253 PSC units Very high safety due to detection of correct power sink (PSR unit), short / open loops, overload, unbalance on the wire pairs etc. Small footprint (W x D x H): 355 mm x 236 mm x 66 mm Very high density: up 27 PSC 0800 units per ETSI N3 rack (= 216 feeding ports) Enhanced operational temperature range up to -25°C * PSC output power set to 380VDC **assumed parameters: diameter of copper wire = 0.4 mm; wire resistance <1,500Ω Application areas FTTC – Feeding of active components in street cabinets from central office site, e.g. micro-DSLAMs, VDSL2-ONU
