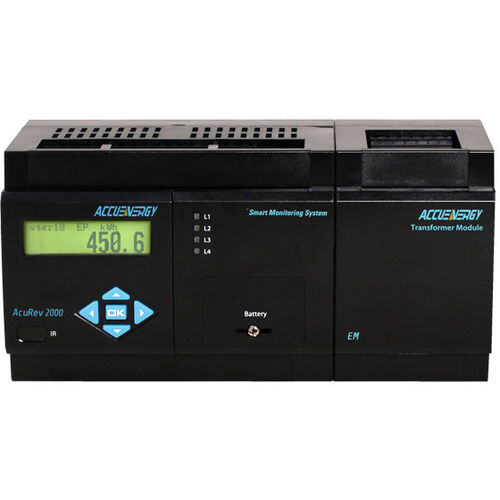

Power measuring system AcuRev Series
energyfor industrial applicationsmulti-channel

power measuring system
power measuring system
power measuring system
Add to favorites
Compare this product


Characteristics

Measured physical value
power, energy
Applications
for industrial applications
Other characteristics
multi-channel

Description

Multi-circuit power metering system that monitors kilowatt-hour (kWh), power, energy, demand, peak demand and time-of-use (TOU) in high-density applications. Best used for tenant submetering, commercial facilities and branch circuit monitoring where multiple units require monitoring. 18 channels for 18 single phase or 6 three phase circuits Revenue grade standard ANSI C12.20 class 0.5 and IEC 62053-22 class 0.5s External current transformers for retrofit applications Optional Direct Current input for new installation Built-in MODBUS RTU via RS485 for integration Built-in data logging for historical recording Over/under limit alarms for demand control Support protocols Modbus-TCP/IP, SMTP, HTTP/HTTPS Post, FTP & SNTP New FeatureSupport 15-second interval datalogging and data post New FeatureSupport sFTP server built-in for datalogging storage and retrieval New FeatureSupport SNMP V2 and SNMP trap Built-in Ethernet and New FeatureWiFi communication New FeatureSecure and encrypted HTTPs Webserver for meter reading and configuration New FeatureTwo-tier user management system to provide efficient monitoring and access New FeatureOptional free cloud-based metering data storage

Catalogs

No catalogs are available for this product.

See all of Accuenergy Canada Inc.‘s catalogs
