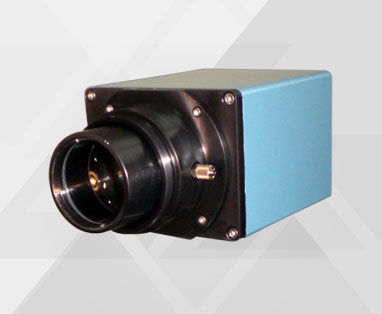

Aluminum processing pyrometer FR3000
without display°Cwith laser pointer

aluminum processing pyrometer
aluminum processing pyrometer
Add to favorites
Compare this product


Characteristics

Display
without display
Units of measurement
°C
Aim
with laser pointer
Communication
RS485, 4-20 mA, PROFIBUS, RS-232
Protection level
rugged
Configuration
fixed, built-in
Applications
for aluminum processing
Other characteristics
high-precision, non-contact, scanning
Temperature

Min.: 100 °C
(212 °F)

Max.: 600 °C
(1,112 °F)

Precision

0.3 %, 0.7 %, 1 %, 2 %

Response time

Min.: 100 ms

Max.: 10,000 ms

Description

Key Features • Capable of measuring targets with variable emissivity • Rugged design • High accuracy in real world conditions • Full range of accessories • Wide range of built-in functions Specifications • Power supply: 24V (18 - 36V) DC 0.4A • Optional outputs: 4-20 mA, 0-20 mA, 0-10 V, RS- 232, RS-422, RS485, Alarms, Profibus • Response time: 0.1 - 10 Sec (Default value: 0.5 sec) • Optional: Display P110 monochrome single channel • Scanning System PS3000 • Accuracy : Above 300°C = ± 0.3% of measured value 300-200°C = ± (0.3% +1°C) 200-150°C = ± (0.7% +1°C) 150-100°C = ± (1.0% +2°C)
