Fiber laser cutting machine LINECUT® Series
for metalsheet metalcoil

Fiber laser cutting machine - LINECUT® Series  - Accurl Machine Tools - for metal / sheet metal / coil
Fiber laser cutting machine - LINECUT® Series  - Accurl Machine Tools - for metal / sheet metal / coil
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
fiber laser
Material
for metal
Product handled
sheet metal, sheet, coil
Control type
CNC
Applications
for industrial applications
Configuration
compact
Other characteristics
automatic, with roller feeder, coil-fed
X travel

1,500 mm
(59.06 in)

Y travel

3,000 mm
(118.11 in)

Laser power

Max.: 4,000 W

Min.: 1,000 W

Description

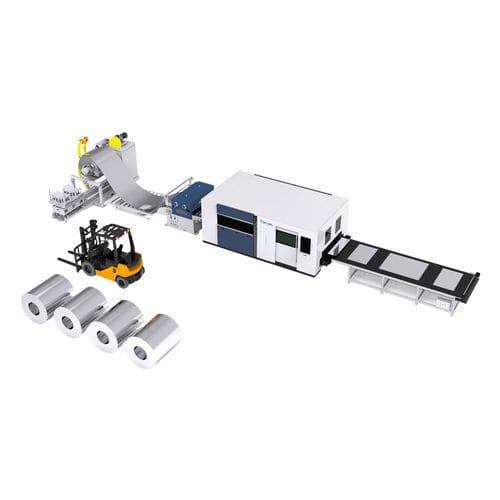

Coil and sheet fed laser cutting The automatic coil-fed and sheets fed laser cutting machine from laser cutting blanking line has the most versatile setup.It processes with the maximum simplicity strips up to 1550mm in width, and sheets up to 14 meters in length with a very compact layout. Flexible Continuous Coil FED Laser Cutter Processes Always looking for more efficient solutions towards his customers, ACCURL designed his new LINECUT® concept combining the unmatched flexibility of laser cutting together with the performance of ACCURL coil-fed laser cutting systems for blanking. Simplicity Meets STATE-OF-THE-ART Laser Cutting Technology ACCURL® has developed a whole range of coil-fed (and sheet-fed) laser cutting systems and systems for sheet metal. The different solutions are available for different types of production, whether from steel coil or standard sheets, with fiber laser cutting or combined punching/laser systems. Features of the Laser System: • Working area 1500x3000mm • Machinable material: from 0.5 to 2mm gauge, up to 800 ~1500mm in width • Source by IPG Photonics Elements making up the system are: • 15000kg decoiler • ACCURL feeder with Coil Car • LINECUT-3015 fiber optic laser cutting system • Fiber optic laser source from 1000W up to 4000W • Chiller cooling system. • Coil lines are customized to match specific material requirements. • CypCut CAM programming/nesting software for processing coils of the same width as the product (100% material used). Unique Manufacturing Process ACCURL has employed cutting-edge technologies to manufacture LINECUT-line automatic coil fed laser cutting system that are flexible and easy to use.
