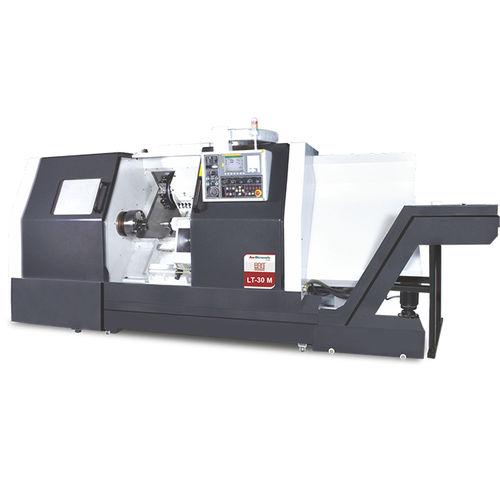

CNC turning machine LT 30 -1500 M
3-axisdrillingmilling

CNC turning machine
CNC turning machine
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
3-axis
Applications
drilling
Other characteristics
milling, high-precision, powerful, high-rigidity
Diameter

390 mm
(15.35 in)

Spindle speed

3,000 rpm
(18,849.556 rad.min-1)

Description

Ace Turn mill centers are high precision CNC Turning centers with C axis capability to cater a wide variety of machining needs like turning, milling, drilling & tapping in single setup which increases the capability of the machine significantly. The main spindle provides machine indexing in precise increments for part positioning and during live tool operations, the main spindle is locked by a powerful brake, which disengages while turning and indexing. The C-axis provides, bi-directional spindle motion that can be interpolated with X and / or Z motion. The machine elements like ball screws, bearings, CNC systems and drives have been chosen from some of the best manufacturers in the world. The machine is assembled by a dedicated team of skilled craftsmen under expert technical guidance. The machine has superior features like high rapid rates for both axes, rigid cartridge type spindle, safety clutch for both axes, rigid cartridge type spindle, safety clutch for both the axes and chip conveying from the rear or side to suit the plant layout. Bed The bed is a fine grain grade 25 cast iron casting. It is well ribbed to provide rigidity and is thermally seasoned. The bed is designed for easy chip flow and removal. Spindle The spindle is assembled and tested in a controlled clean room environment. The spindle is of cartridge type design and uses super precision cylindrical roller bearing in front and cylindrical roller bearing in the rear. The bearing configuration gives very high stiffness to the spindle assembly in both axial and radial direction.Other bearing configuration are also possible.
