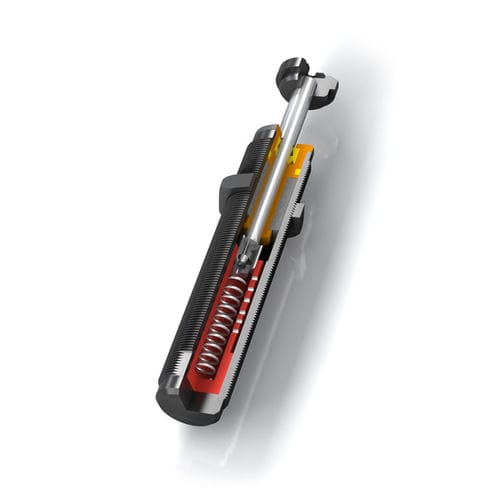

Shock absorber SC300EUM
hydraulicfor machinesself-compensating

shock absorber
shock absorber
shock absorber
Add to favorites
Compare this product


Characteristics

Function
shock
Technology
hydraulic
Applications
for machines
Other characteristics
self-compensating, miniature, long-stroke
Load capacity

33 N

Stroke

19 mm
(0.75 in)

Description

Long stroke and soft impact Self-Compensating, Soft-Contact Ideal for soft damping: The SC found in the model code from the ACE product family SC190 to SC925 stands for 'soft contact'. These miniature shock absorbers manufactured from one solid piece are designed in such a way that they can be setup with a linear or a progressive braking curve. The soft damping character is thanks to the special, long strokes producing smooth deceleration and low reaction forces. These maintenance-free, ready-to-install hydraulic machine elements are equipped with an integrated positive stop. The use of side load adapter allows impact angles of up to 25°. Thanks to the designed overlapping effective weight ranges, these dampers cover an effective load range of below 1 kg to more than 2,000 kg! The miniature shock absorbers from the SC190 to SC925 product family are used in mechanical engineering and primarily in the areas of handling and automation. Impact velocity range 0.15 m/s to 3.66 m/s. Other speeds on request. Operating temperature range 0 °C to 66 °C Mounting in any position Positive stop Integrated Material Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel Damping medium oil, temperature stable Miniature Shock Absorbers - SC190 to SC925 Damping system for pick and place machines ACE miniature shock absorbers optimize production with minimum expenditure. The cycle rate for an assembly line producing electronic components was increased to 3,600 units/hr. The ACE SC190 miniature shock absorbers decelerate the rapid transfer...
