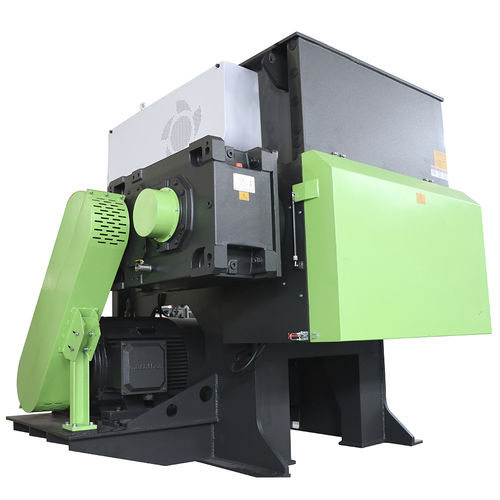

Single-shaft shredder HS1200
for cardboardpaperfor waste

single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
Add to favorites
Compare this product


Characteristics

Number of shafts
single-shaft
Application
for cardboard, paper, for waste
Other characteristics
rotary shear, with conveyor

Description

HS1200 Plastic Automatic Shredder Machine Product Description The redesigned hydraulic pusher not only improves the power transmission and pushing speed, but also effectively avoids the occurrence of material blocking and the wear of the internal guide rails. This specially designed device creates about 35% more space in the cutting chamber. This series shredder adopts high-efficiency V type rotor design. The minimum width of the rotor is 1200mm, the maximum width is 2000mm, and the rotation diameter is 560mm. The rotor is driven by an oversized gearbox. The low speed of 85rpm ensures smooth running with high torque. The hydraulic station is tightly integrated with the shredder chamber, which saves space and protects the hydraulic station. It is also easy to replace and maintain. The whole machine is welded by a special welding process, which can greatly improve the stability of the whole machine and can effectively prevent splashing. At the same time, the HS series has all the advantages of other shredders, including the special design of rotor knives and knife holders, external bearings, and convenient and advanced intelligent control systems. HS series shredder is designed to meet the requirement of waste recycling in various industries,including bulk materials, pipes,films,woven bags, and all kinds of electronic cable scrap,ICB buckets,waste paper,used wood and various organic materials. Rotor diameter(mm):560 Number of rotor knives(pcs):105/112+29 Number of stator knives(pcs):2*3 Hydraulic feeding ram(kw):5.5 Feed opening(mm):1200*1850 Standard screen(mm):40-100 Chamber size(mm):800*1000 Motor(Kw):90 Machine weight(kg):9000 Machine Size(mm):2245*2570*2390

VIDEO
