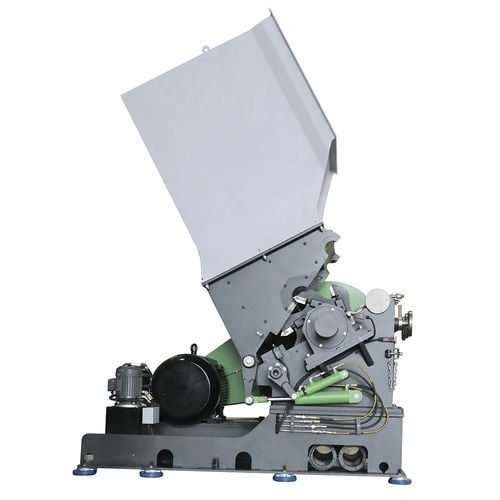

Single-roller crusher GH700/1200

stationaryhigh-capacityfor all materials

GH700/1200 Good Price High Speed Waste Plastic Grinder Product Description GH heavy-duty crushers are designed for size reduction of tough materials and to meet high grinding requirements with overall steel welded structure. GH crushers have a solid crushing cavity and are equipped with a variety of rotors. Rotor diameter cover from 700mm to 1100m, while rotor length ranges from 700mm to 2400mm. GH crusher has large rotor bearings and "V" shaped rotor,which improves cutting efficiency and reduces dust in the flakes. By adding a dismountable deflection wedge (the third fixed knife), GH crusher is able to granulate more various materials and quickly increase production. Anti-wear plates in the crushing cavity and external bearings help to reduce the risk of contaminants entering the crushing chamber. GH heavy-duty crushers are widely used in size reduction of profiles, pipes, film, sheets, large rigid lumps.,etc. Item(Unit):GH700/1200 Rotor diameter(mm):700 Rotor width(mm):1200 Number of rotor knives(pcs):7*2/9*2 Number of stator knives(row):2月3日 Chamber size(mm):1150*815 Motor power(kw):110 Machine length(mm):2815 Machine width(mm):2360 Machine height(mm):3770 Tough welded steel machine body ACERETECH crusher’s body is made of special high strength welded steel to prevent shell cracking and excessive stress damage while running. Uniform grinding We have more than twenty different knife designs such as double-shear V-shaped cutting. They can achieve uniform particle size and less dust after crushing. Modular cutting chamber. Select suitable knives and screen according to material characteristics. Alloy steel rotary and fixed knives are made by European supplier.
