suction blast cabinet / manual
D080

Add to MyDirectIndustry favorites
suction blast cabinet / manual suction blast cabinet / manual - D080
{{requestButtons}}

Characteristics

  • Technology:

    suction

  • Operational mode:

    manual

  • Width:

    770 mm

  • Height:

    1,750 mm

  • Depth:

    910 mm

Description

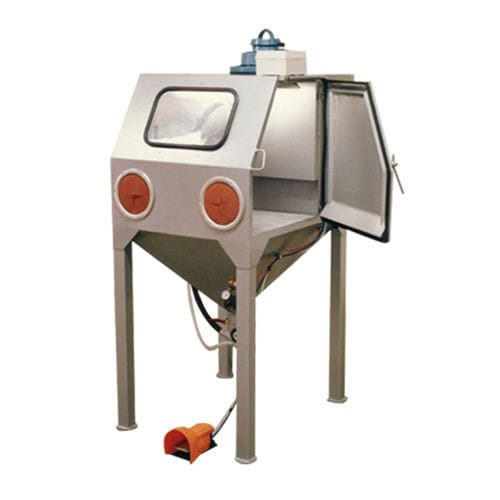

ABRASIVE BLAST CABINET WITH INTEGRATED DUST COLLECTOR

Work screen
One-piece, max. holds up to 100 kg
Gun-holder
Adjustable, secured on left wall
Sandblasting switch
Pneumatic foot pedal
Cabinet door
Lift-off one-piece swing type door assembled on the right side of cabinet allowing a passage of 500 x 500
Window
No blind spot, including: 1 polycarbonate window, thickness 4 mm, fitted in a sealed profile and 1 polycarbonate wear sheet, thickness 1 mm, secured in a tilting frame, very easy to replace
Lighting
1 18 W 220 V fluorescent waterproof bowl power supply, unbreakable methacrylate, dust-free ceiling light
Electric board
Waterproof box on top of cabinet. Equipment: 1 light switch + protection (for suction unit and lighting) against overloading and short-circuits + 30 mA differential protection
