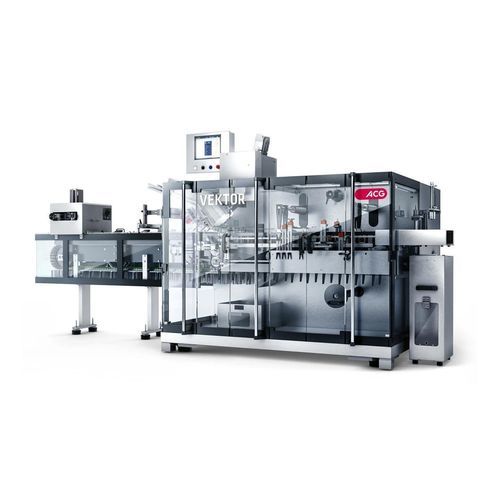

Horizontal cartoning machine VEKTOR series

for the pharmaceutical industrycompactservo-driven

About the VEKTOR
VEKTOR is a compact intermittent-motion horizontal cartoning machine designed for integration with upstream blister packaging lines. Built on a balcony-type framework and mounted on a servo-driven platform, it meets cGMP requirements and provides easy access for cleaning and maintenance.

Applications

• Multiple stacks of blister packs

Features & Benefits

• Servo-controlled product pusher — ensures accurate product handling, unobstructed rear-side visibility, precise height verification and automatic rejection of empty cartons.
• Compact footprint — reduces production floor space.
• Balcony-type cGMP construction on servo-driven platform — facilitates access and cleaning; smooth and quiet operation.
• Single format part — fast and simple changeover.
• Built-in "No product - No leaflet - No carton" system — prevents erroneous outputs.
• Available in multiple pitch configurations — supports a wide range of carton sizes.
• Capability to integrate leaflet and booklet transfer units — allows insertion of patient information in various formats.

Technical specifications

• Models: VEKTOR 5P and VEKTOR 8P
• Maximum output: VEKTOR 5P — 80 cartons/min; VEKTOR 8P — 50 cartons/min
• Carton width (VEKTOR 5P): Min 20 mm — Max 95 mm
• Carton width (VEKTOR 8P): Min 50 mm — Max 130 mm
• Carton height (VEKTOR 5P): Min 16 mm — Max 90 mm
• Carton height (VEKTOR 8P): Min 16 mm — Max 100 mm
• Carton length (VEKTOR 5P): Min 65 mm — Max 200 mm
• Carton length (VEKTOR 8P): Min 65 mm — Max 220 mm
• Supported carton types: reverse tuck-in, glued type, parallel tuck-in, front tuck-in / rear gluing, gluing after tuck-in
