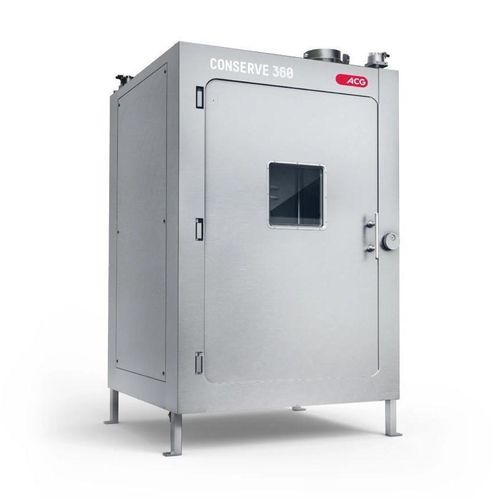

Water jet cleaning system CONSERVE 360®

automaticfor IBC containersdouble

About CONSERVE 360®
CONSERVE 360® is an advanced, eco‑conscious, cGMP‑compliant automated cleaning system engineered for Intermediate Bulk Containers (IBCs). It delivers validated, repeatable cleaning results with full recipe‑based automation and eliminates manual intervention. An optional conductivity sensor on the drain line enables online validation of rinse effectiveness.

Design and hygiene
Seamless stainless steel construction without exposed fasteners and a double‑wall, self‑cleaning structure preserve hygienic integrity and reduce cross‑contamination risk.

Table: Features / Benefits
Seamless stainless construction with no exposed fasteners and double‑wall self‑cleaning design — Ensures cGMP‑compatible hygienic integrity and reduces retention points.
High‑pressure jet technology with specially designed nozzles (operating up to 70 bar) — Effective removal of persistent residues and prevention of cross‑contamination between batches.
CIP‑compatible cleanable pump — Maintains required pressure and flow while facilitating hygienic maintenance.
Recipe‑based cleaning with preprogrammed wash cycles — Full automation, repeatability and validated results without manual intervention.
Designed to reduce water consumption by up to 60% — Resource savings, lower environmental footprint and reduced total cost of ownership.
Optional integration with inline conductivity measurement — Online monitoring, cycle recording and audit support for process control.
Support for 21 CFR Part 11 — Secure electronic records, audit trails and historic cleaning data review.

Key functions and advantages

• Fully automated, recipe‑driven operation eliminating manual cleaning steps.
• Optional online conductivity validation to confirm rinse effectiveness.
• Hygienic, seamless stainless construction with self‑cleaning double‑wall design.
• High‑pressure nozzle technology (up to 70 bar) for deep cleaning of IBCs.
• Cleanable pump offering adjustable pressure and flow to match process needs.
• Up to 60% water consumption reduction compared with conventional systems.
• Cycle documentation and traceability to support audits and regulatory compliance.

Features / technical specifications

• Application: Automated cleaning of Intermediate Bulk Containers (IBCs).
• Construction: Seamless stainless steel, no exposed fasteners, double‑wall self‑cleaning design.
• Nozzle operating pressure: up to 70 bar (specialized high‑pressure nozzles).
• Pump: cleanable (CIP‑capable) pump designed to maintain required pressure and flow.
• Control: Recipe‑based cleaning with preprogrammed wash cycles.
• Validation: Repeatable cleaning results; optional inline conductivity sensor for real‑time validation.
• Water efficiency: Engineered to reduce water consumption (typical reduction up to 60%).
• Compliance and traceability: cGMP‑oriented design and support for electronic records (including 21 CFR Part 11 capabilities).
• Operational benefits: Minimizes manual intervention and risk of cross‑batch contamination.
