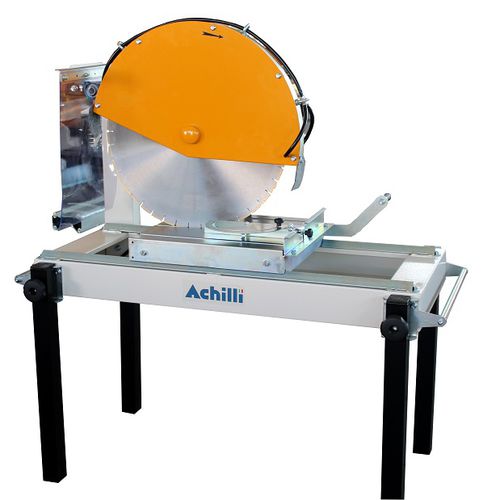

Circular saw ATR-XL

cut-offfor concretefor granite

Product description
Portable saw with sliding bench for cutting thick stone and building materials on construction sites. Designed for on-site use; accommodates a Ø650 mm diamond blade.

Features

• Bench motion: manual bench feed; useful cut 750 mm (with plunge mechanism).
• Blade diameter: accepts a diamond blade 650 mm in diameter.
• Cutting depth adjustment: manual plunge mechanism with handle and head locking system for precise depth control.
• Worktable: galvanized steel worktable with integrated handle and self-contained water recycling tray and pump.
• Transportation: folding legs and wheels for easy transport; functional handles for moving the bench and saw head.

Advantages

• Worktable built from metal sheet rails for on-site durability.
• Integrated self-contained water recycling tray and pump to control slurry.
• Functional handles for safe and ergonomic handling of bench and head.
• Folding legs and wheels enable straightforward transport between job sites.

Accessories

• Transportation wheels to facilitate movement on site.
• Adjustable angle square for measuring and setting workpieces.

Technical details (table)
Useful cut — 750 mm (2'5") - with plunge mechanism
Diamond blade diameter — 650 mm (26")
Blade bore size — 25.4 mm (1")
Motor power — 4 kW (5.5 HP), three-phase
Motor rotation speed — 1400 rpm (50 Hz) / 1700 rpm (60 Hz)
Standard voltage-frequency — 400V/230V - 50/60 Hz

Specifications / technical specifications

• Useful cut: 750 mm (with plunge mechanism)
• Diamond blade diameter: 650 mm
• Blade bore size: 25.4 mm (1")
• Motor power: 4 kW (5.5 HP), three-phase
• Motor rotation speed: 1400 rpm (50 Hz) / 1700 rpm (60 Hz)
• Standard voltage/frequency: 400V/230V - 50/60 Hz
• Worktable: galvanized steel with integrated handle and self-contained water recycling tray and pump
• Transport: folding legs, wheels and functional handles
