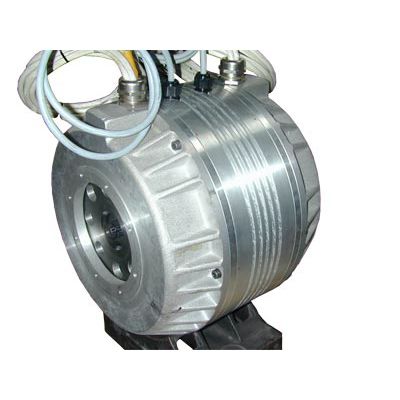

DC motor
synchronous100 Vpermanent magnet

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Voltage
100 V
Configuration
permanent magnet
Applications
vehicle, for the automotive industry
Other characteristics
direct-drive, with gearbox
Torque

Min.: 60 Nm (44.2537 ft.lb)

Max.: 100 Nm (73.7562 ft.lb)

Rotational speed

Min.: 425 rpm (2,670.35 rad.min-1)

Max.: 6,500 rpm (40,840.7 rad.min-1)

Description

Description: In these years has been a growing interest in hybrid and electric cars. ACM Engineering, in collaboration with manufacturers electronic power devices and companies specialized in automotive, design and produce synchronous electrical machines adapting their product to the electrical and mechanical customer’s requests. During the last years we completed several projects that can be classified under two different engineering approaches: application of a synchronous permanent magnet motor with differential gear and direct drive application on wheel’s axis. Application with differential gear: In this application we use synchronous permanent magnet motors with high nominal speed function of differential gear’s ratio. ACM Engineering produced a motor with 60 Nm at 6500 rpm for a van transporting waste in city’s center. Motor was coupled with a 1-11 ratio differential gear. Bidirectional electronic device allows regenerative braking, during deceleration the vehicle’s kinetic energy is converted into electricity to recharge batteries. Direct drive applications: In this application electric motors are directly coupled in wheel’s axis, the differential function is entrust to electronic device. ACM Engineering produced two motors 100 Nm nominal torque at 425 rpm directly applied on wheel’s axis for a small electric car.
