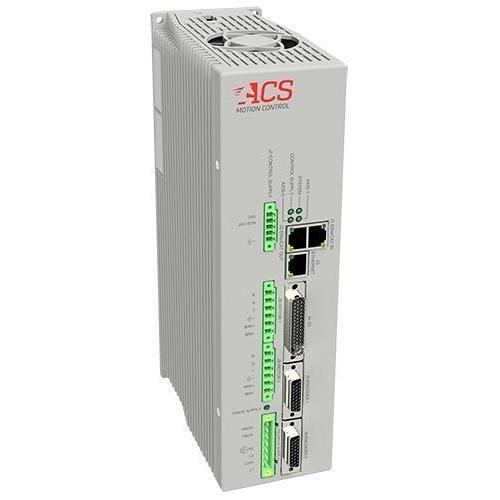

AC servo-drive UDMac1/2-axisEtherCATpanel-mount
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Number of axes
- 1/2-axis
- Output signal
- EtherCAT
- Other characteristics
- panel-mount, compact, with AC power supply, with integrated safety
- Intensity
Max.: 20 A
Min.: 10 A
Description
Overview
The UDMac is part of the Universal Drive Module (UDM) series of EtherCAT-based drives for OEM multi-axis motion control applications. Controllable by any ACS SPiiPlus Platform EtherCAT MainDevice, it uses advanced servo algorithms to maximize motion performance and supports a wide range of motor and stage types through universal servo drive technology.
Product type
1- or 2-axis EtherCAT AC-input Universal Drive Module
Highlights
Resources
Datasheet available (technical datasheet for the product).
Technical specifications
The UDMac is part of the Universal Drive Module (UDM) series of EtherCAT-based drives for OEM multi-axis motion control applications. Controllable by any ACS SPiiPlus Platform EtherCAT MainDevice, it uses advanced servo algorithms to maximize motion performance and supports a wide range of motor and stage types through universal servo drive technology.
Product type
1- or 2-axis EtherCAT AC-input Universal Drive Module
Highlights
- Designed for low-power, multi-axis precision stage control
- Advanced control algorithms with position event generation
- Compact panel-mount form factor
- MIMO-capable for coordinated multi-axis control
Resources
Datasheet available (technical datasheet for the product).
Technical specifications
- Drive axes: 1 or 2
- Maximum EtherCAT cycle rate: 10 kHz
- Drive supply input: 85–250 Vac (single- or three-phase)
- Bus voltage: Vin × 1.414
- Maximum current output per axis: 10/20 A
- Encoder channels: 4 AqB / 2 SinCos / 2 Absolute
- Mounting: Panel
- Functional safety options: STO & SS1
