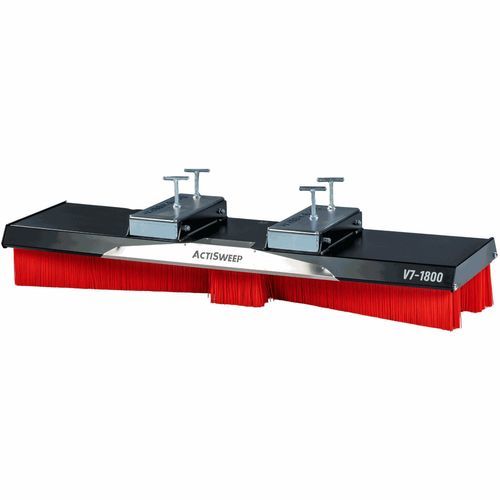

Forklift broom V7

industrial

Overview
The Actisweep V7 push broom is the economical model in the V-Concept® range. It is designed for quick mounting on forklift forks and for occasional to light-duty sweeping tasks while offering simplified options and fewer brush rows than larger models.

Main applications

• Forklift-mounted sweeping for warehouses and logistics yards
• Agriculture (grain handling areas)
• Building materials yards and sawmills
• Roadworks and seasonal clearing (light snow)
• Recycling centres and equestrian facilities

V-Concept® (patented)
The V-shaped arrangement of the front brush rows recentres swept material toward the centre to limit side swathes and improve collection efficiency.

Brush composition & layout

• 7 rows of solid polypropylene fibres, brush height 240 mm
• 3 straight rear rows
• 2 front rows forming a V to concentrate waste centrally
• 2 small rows at the V tip to even out distribution and prevent buildup

Adaptations & options

• Standard forklift forks adaptation included for pallet forks mounting
• Dedicated attachment available for Can-Am quad
• Anti-dispersion kit for passes along walls and edges
• Other machine-specific attachments available; consider V9 or V13 for broader compatibility

Product variants / dimensions

• Actisweep V7-1500 — L1533 mm x W1500 mm x H240 mm (Ref CE86A008-A)
• Actisweep V7-1800 — L1840 mm x W1500 mm x H240 mm (Ref CE86A008-B)
• Actisweep V7-2400 — L2440 mm x W1500 mm x H240 mm (Ref CE86A008-C)

Advantages summary

• V-Concept® for centralised sweeping and reduced side swathes
• Long brush life (manufacturer-stated effective sweeping up to 800 km with specified brushes)
• Simple operation and low maintenance (no hydraulic connection)
• Multiple attachments available for different vehicles

Technical specifications

• Model name: Actisweep V7
• Brush material: solid polypropylene fibres
• Brush height: 240 mm
• Brush rows: 7 (3 rear straight; 2 front in V; 2 small tip rows)
• Patented system: V-Concept®
• Standard mounting: forklift forks adaptation included
• Variants and references: V7-1500 (CE86A008-A), V7-1800 (CE86A008-B), V7-2400 (CE86A008-C)
