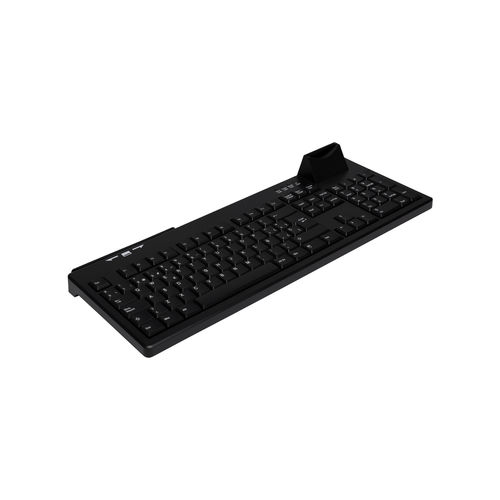

AK-8820S
USB KEYBOARD WITH MAGNETIC STRIPE READER AND SMART CARD READER
The AK-C8820S is a high Performance, robust and highly reliable PC Keyboard with integrated Magnetic Stripe Reader and Smart Card Reader.
It is designed for security, healthcare, financial and POS/POT applications.
The Gemalto Chipset stands out for utmost compatibility and reliability, referred to Standard Drivers and BIOS versions within common operating Systems.
The data Transmission from the magnetic stripe Reader is processed through Key stroke Emulation (USB HID Keyboard Codes) for easy Integration with existing Software.
FEATURES
Integrated Magnetic Card Reader and Smart Card Reader
PC/SC compatible
CCID compatible
LED indicator for chipset
Splash water resistant Key field
Gemalto Chipset ID Bridge CR 20
COMPATIBILITY
All operating Systems supporting Standard USB Keyboard
INTERFACE
USB 1.1 full speed (12Mbps)
TEMPERATURE RANGE
Storage: –20º to +60ºC
Operation: 0º to +50ºC
SUPPLY VOLTAGE
5V +/-10 % via USB Port (full power device)
CURRENT CONSUMPTION
Appr. 104mA (Full Power Device)
DIMENSIONS
452 mm x 171 mm x 59 mm
WEIGHT
Appr. 950g
LED STATUS INDICATORS
Num Lock, Scroll Lock, Caps Lock IC Card
KEY TRAVEL
Appr. 2.5 +/- 0.5mm
SMART CARD READER
Reliability: 100.000 Swipes
Protocols: ISO 7816-1,2,3,4 T=0 & T=1
3V DC, 5V DC selectable Voltage
MAGNETIC CARD READER
Reliability: 500.000 Swipes
Protocols: ISO 7812
AGENCY APPROVALS
CE, RoHS
