Multi-channel manifold ADT12 series

calibrationhydraulicpneumatic

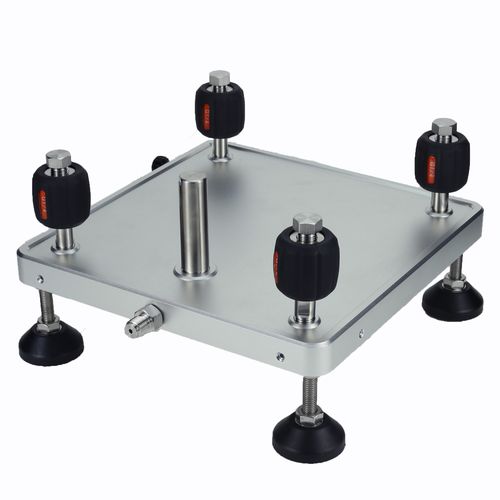

Additel 12X series pressure manifolds are designed for expanding pressure test ports during pressure calibration. The Additel 121 pressure manifold is used for pneumatic pressure calibration up to 3000 psi (200bar), while the Additel 123 manifolds is compatible to hydraulic pressure applications up to 15,000 psi (1,000 bar). A filter is built-in with the 121 pneumatic pressure manifold to prevent contamination introduced by devices under test. There are four hand-tight quick connectors pre-installed on each manifold. The Additel 12X series pressure manifolds allow you to connect without the use of wrenches or Tetape which increases your productivity when using calibration pumps, pressure controllers, dead weight testers, or piston gauges. A test hose (female adapter to male adapter) is included with every Additel 12X pressure manifold. Additel 121 used for pneumatic pressure calibration up to 3000 psi (200bar) Additel 123 used for hydraulic pressure applications up to 15,000 psi (1,000 bar) Filter is built into the manifold Four hand-tight Quick Connecto
