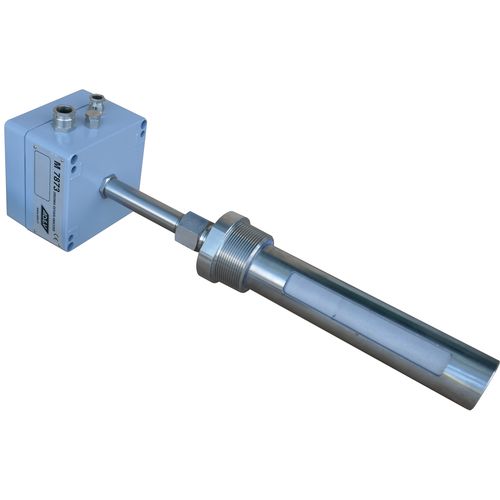

Zirconia Flue Gas Analyser
Self-heated probe, designed to measure Oxygen in flue gas (up to 700°C) for combustion efficiency and fuel saving in small and medium boilers fed by Natural Gas, light and medium oils, Oxygen control in drying biological muds process, measure of water vapor content in Textile and Pulp&Paper.
Available as a transmitter with 4-20 mA output from the probe head or combined with a control unit / display.
MiniProbe M7873 is the only SIL 2 compliant Zirconia in situ analyser able to ensure a reliable O2 measure in safety-demanding applications such as biological mud dryers
Measureable Gas
Oxygen [O2]
Water [H2O]
Main Features
Extreme Roughness
Rugged materials contacting the process gas
Usable in flue gas up to 700°C, either continuously or cyclically
Do not suffer damage or deformation
Installation and protection tube makes the probe suitable for high dust flue gas
Installation and Protection Tube
The MiniProbe can be equipped with a rugged AISI protection tube with an integral filter to ensure:
Effective protection from dust & abrasion
No direct sticking of dirty material on the sensor
Easier installation
Easy to Use
Direct insertion into the duct or pipe
Possibility to verify the calibration without removing the probe from process
European Compliance
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
SIL 2
MiniProbe M7873 is optionally available SIL2 compliant in accordance to normative IEC/EN 61508 : 2010 (parts 1 to 7)
