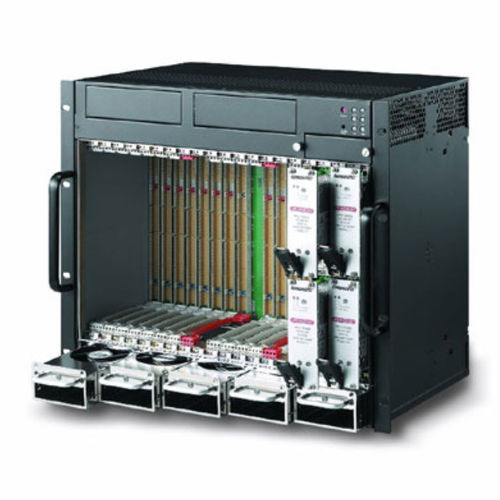

Rack-mount chassis cPCIS-3320/AC

6U9Ubackplane

PICMG® 2.1 Hot Swap compliant 64-bit CompactPCI® backplane with P3 & P5 rear I/O Dual cPCI segments (System A: 1 + 7 slots, System B: 1 + 4 slots) 3+1 (750 W + 250 W) hot swappable redundant power supplies with universal AC input Redundant cooling architecture Magnetic circuit breaker protection for AC input The cPCIS-3320 Series 9U Dual-System Platform is ideal for developing telecom applications focusing on media and signaling gateways, as well as telecom value-added services like Location Based Service (LBS), Ring Back Tone (RBT), and Multimedia Message Systems (MMS). This flexible and reliable development platform with optimized I/O and storage provides the best solution for equipment manufacturers and system integrators and shortens time-to-market for fast growing business revenues. The cPCIS-3320 supports dual systems and two 5.25" drive bays. System A (left side) supports 1+7 slots (1 host slot + 7 peripheral slots), and System B (right side) supports 1+4 slots (1 host slot and 4 peripheral slots). Both segments support 64-bit/66MHz PCI and H.110 CT buses.
