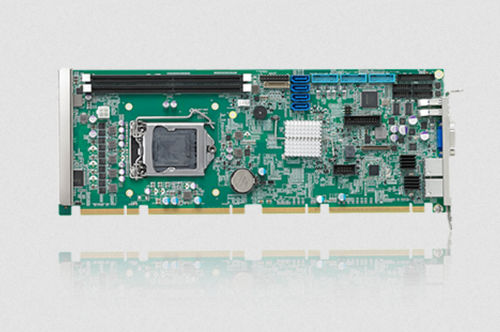

PICMG 1.3 single-board computer NuPRO-E43

Intel® Core i3 - 7101EIntel® Pentium® G4400TEIntel® Core™ i5-6500

The ADLINK PICMG 1.3 SHB, the NuPRO-E43, supporting the 6th Gen IntelR Core i7/i5/i3 processor and equipped with the IntelR Q170 Express chipset. The NuPRO-E43 supports high-speed transfer interfaces such as PCIe3.0, USB 3.0, and SATA 6 Gb/s (SATA III), with dual-channel DDR4 2133 MHz memory up to 32 GB. Combined dedicated high-bandwidth PCIe x16 Gen3 (can be configured to 2x PCIe x8 or 1x PCIe x8 + 2x PCIex4 to backplane), PCIe x4 and conventional PCI slots enable compatibility with high-speed frame grabbers and motion controllers, delivering an optimum solution for machine vision and automation applications. The NuPRO-E43 also provides enhanced asset protection with leading rugged I/O and SEMA 3.0 eAPI-based software protection key, resulting in a significant competitive advantage in the IA field.
