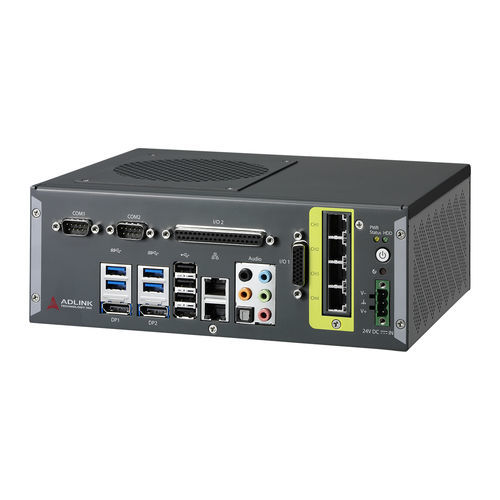

Machine vision vision system EOS-1300

automationcompactIntel® Core i7

ADLINK’s EOS-1300 is a high performance compact vision system equipped with 6th Generation IntelR Core? i7 processors and four independent PoE (power over Ethernet) ports, delivering data transfer rates up to 4.0 Gb/s. EOS-1300’s FPGA based DI/O provides programmable de-bounce filter, on the fly trigger, and user wiring Sink/Source DO and Encoder functions, making it the ideal solution for machine vision applications requiring high computing power and time deterministic solutions with minimal footprint. The EOS-1300 DI/O provides minimal and fixed latency without occupying CPU resources. The DI/O function provides APIs allowing programming for de-bounce filter of DI, delay time, and pulse width of DO and also advanced Encoder functions suitable for conveyor applications. The highly flexible design supports either Sink or Source DO via external wiring. With all I/O connectors on one side for easy installation, and the latest 6th Generation IntelR Core? i7 processor, powerful and flexible DI/O, and compact size, the EOS-1300 is the perfect vision system for automation and machine vision.
