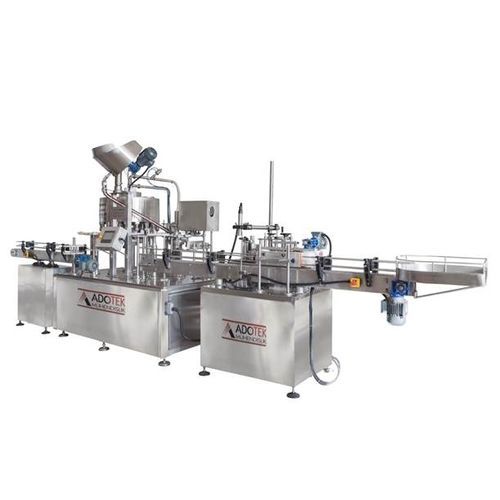

Automatic filler capper labeler ADK 321

for the food industryfor cosmetic productsfor the pharmaceutical industry

Fills all fluid products in the food, chemical, pharmaceutical and cosmetic sectors. TECHNICIAL SPECIFICATIONS • 304 quality stainless steel chassis. • The filling range is 100cc-1000cc / 1000cc-5000cc. • Filling nozzle: 4 - 6 - 8 pieces. • Conveyor length: 6 meters. • Electric power: 3 KW. • Air consumption: 8 bar at 300 lt minute • Working system: Mechanical, electronic and electro pneumatic. • Working air pressure: 6-8 bar. • The dosing pipes are 304 quality stainless steel with a rectification. • Bottle centering system. • Optionally stainless conveyor with baked or plastic bean paste. • Filling and nozzles with servo motor. • Features of bottom and top filling. • Weight control PLC controlled display. • Touch screen. • Filling speeds can be adjusted. • The complex Plexiglass cabin on request.
