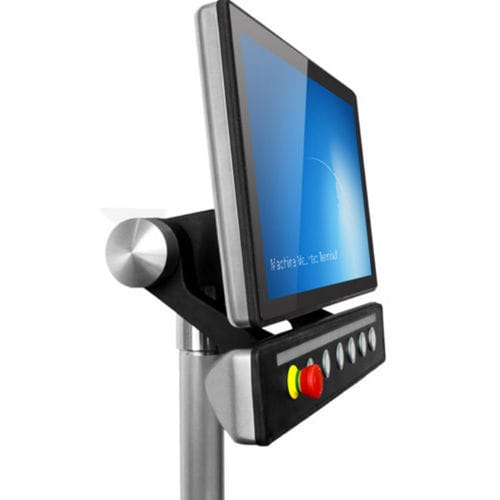

Multitouch screen HMI terminal MMT8000
projected capacitive touchscreenVESA mountingarm-mounted

multitouch screen HMI terminal
multitouch screen HMI terminal
multitouch screen HMI terminal
multitouch screen HMI terminal
multitouch screen HMI terminal
multitouch screen HMI terminal
Add to favorites
Compare this product


Characteristics

Interface
multitouch screen, projected capacitive touchscreen
Mounting
VESA mounting, arm-mounted
Resolution
1920 x 1080
Processor
Intel® Celeron®, Intel® Core i5
Other characteristics
compact, fanless, Windows 10 IoT, stainless steel, Ethernet, USB, Bluetooth, WiFi, IP65, robust
Applications
industrial
Screen size

17.3 in, 23.8 in

Description

Machine mounted terminals - The hygienic compliant IPC solution for production processes The IP65 or IP69K-compliant operating terminals with integrated processor unit are the first fan-free industrial PCs of this performance class available in a compact design. The very latest multi-touch technology provides the ideal platform for modern visualisation of the highest standard. The innovative HYGIENE COMFORT DESIGN is perfectly designed for comfortable and smooth use in hygienic areas. Technology 100% made in Germany. Robust technology Slim design • Fully enclosed stainless steel housing • Available in the protection classes IP65 and IP69K • Surfaces in glass and stainless steel for optimal and easy cleaning of the device • Hygienic design according to EHEDG guidelines – Design according DIN EN ISO 14159:2008 (hyg. Design for machines) • Fanless design • Chemically toughened front panel • Optimised heat dissipation through integrated heat pipes • Implementation of the latest technological standards: Sandwich housing technology consisting of multiple stainless steel and aluminium layers Comfortable display sizes For extensive system and process visualisation • 17.3" and 23.8" • Full HD 1920 x 1080 pixels • Bright display with a wide viewing angle • Clearly structured visualisation and control of machines and systems Simple and intuitive The latest multi-touch technology • Capacitive multi-touch display for comfortable multi-finger operation • Operation with gloves is possible • Anti-reflective front panel Intel® processor technology of the fourth generation Supports modern operating systems • Optional Intel® Celeron® 1.6 GHz or Intel® Core ™ i5 1.9 GHz processors
