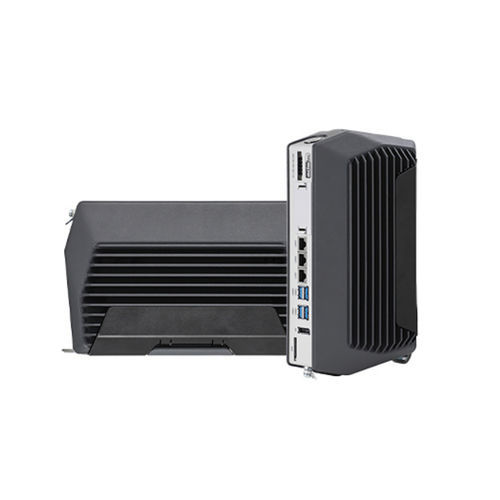

Box PC IPC9000

DIN railIntel® Celeron® 4305U8th Generation Intel® Core™

Industrial PCs Latest-generation powerful Box PC The new ADS-TEC Industrial PCs with long-term availability for control cabinet installation deliver powerful performance without compromises: The sophisticated passive cooling concept does not require a fan and allows the use of powerful 8th-generation Intel® Celeron® and Intel® Core™ processors at the same time. Technology 100% made in Germany. Strong performance For stringent requirements • Latest 8th-generation Intel® Celeron® 4305UE and Intel® Core™ i5-8365UE processors (Whiskey Lake) • Memory for demanding applications with up to 32 GB of fast DDR4 RAM • Flash SSD mass storage optionally configurable as RAID Easy servicing & quick installation Convenient and simple • Side service duct access for an uncomplicated and quick access to Flash SSD and CMOS battery • Separate mounting panel for secure and simple mounting by hooking in - even in tough built-in environments (DIN rail mounting is not possible) Integrated HDBaseT transmitter module The additional option for greater distances The optional integrated HDBaseT transmitter module allows multimedia signals (image, sound, touch control) to be transmitted up to 100 m via a single cable. The ideal solution for remote application environments in combination with industrial monitors from ADS-TEC such as our OPD series or MMD series.
