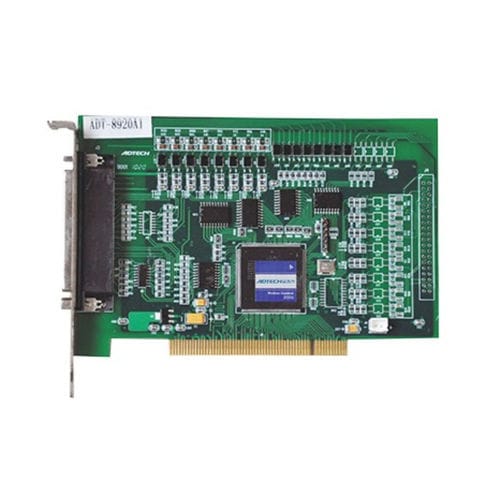

Multi-axis CNC control card ADT-8920

digital outputdigital input

ADT-8920A1 universal motion control card is one of the ADTECH axis motion control card PCI bus computer-based members. Mainly used in multi-axis motion control point, with T-type, S-curve acceleration, hardware cache, position latch function, the product is widely used in testing, advertising, printing, PCB and other industries. Features Hardware Index Controllable number of axis: 2 axis; Differential pulse output for each axis, the maximum frequency 2M Hz; Pulse Output Type: Pulse +direction(PUL+DIR) or double-pulse(CW+CCW); Large-capacity hardware cache, the maximum hold 2048 bytes; Control Function T-shaped, S-shaped curve acceleration and deceleration; Any hardware 2-4 axis linear interpolation; Hardware buffer interpolation, circular interpolation software; Change the speed and movement to achieve the target position; Software Support Operating system: DOS, WINDOWS; Programming environment: C, BC++,VC,VB; Application examples of open-DOS and WINDOWS; Application environment Operating temperature: 0-60℃; Storage temperature: -20-80℃; Temperature: 5-95% non-condensing; Application Biological, medical equipment; Semiconductor automatic processing and testing equipment; Advertising equipment; Deliver,shipping and serving Delivery and shipping:We provide ocean shipping, international express and air transportation to deliver your products to you.(*Arrival time will vary depending on destination country policy and traffic condition.)
